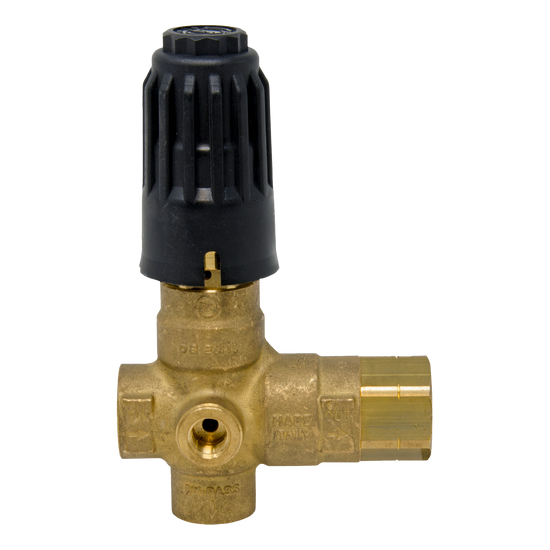

The YVB4021HT Pressure Washer Unloader Valve is a real doozy - a top of the line piece of gear that's specifically designed to handle the tough stuff - namely multi-gun pressure washer systems and super-intensive industrial cleaning routines. Manufactured by PA, a company that's known for building robust stuff, this unloader is built to handle an incredible 21 GPM (Gallons Per Minute) and handle maximum operating pressure of up to 4050 PSI. That's a whole lotta power - making the YVB4021HT an absolute must-have for specialist, big-time operations where you've got multiple users or just a ton of fluid transfer going on all at once to get the job done with maximum efficiency.
This unloader valve, aka YVB4021HT, is the heart of your system's safety and control setup. When you hit the spray gun trigger and then take your finger off it, the unloader springs into action and rapidly redirects all that high-pressure water - yes, 21 GPM's a lot of water - back through the BYPASS port and into the pump inlet or a reservoir. And this is super important, because it relieves the pressure on all the hoses and pump - stopping the pump from running against a closed line which could otherwise cause some nasty temperature spikes (thermal bypass) that would do a real number on those expensive high-flow pumps and make 'em wear out much faster than they should. Plus this keeps your equipment running strong for years to come.
Product Benefits and Design Features
The YVB4021HT stands out from the pack due to its high-flow capacity, multi-gun suitability, and serious safety features, making for very durable and reliable performance.
Multi-Gun Capability: This unloader is perfect for use with multiple guns at the same time - it's got 21 GPM of MAX GPM going on, which lets the pump drive several spray guns all at once without flinching under pressure. The inside is built to keep the pressure rock solid, so all your users get a good flow for an effective cleaning job.
Advanced Safety Design: One of the cool things about this unit is that the o-rings are way upstream of the threads, so there's no risk of fittings getting blown out if there's overpressure. Plus the internal seals are dynamic, made up of o-rings and teflon runner, so they last a whole lot longer than the regular kind and are way more resistant to chemicals too.
High Pressure and Thermal Resilience: The valve is built to take a beating, with a high MAX PSI rating of 4050 and a MAX TEMPERATURE rating of 200°F. That means it's perfect for high-temperature water pressure washer systems - you can keep your system hot and heavy without damaging the valve.
Easy Plumbing and Monitoring: The main ports - INLET, Outlet, and BYPASS - are all 1/2" FPT, so you can do high-flow plumbing without any restrictions. Plus there's a 1/4" fitting for a pressure gauge, which makes it super easy to get the system calibrated and running smoothly, maximizing that efficiency.
Key Features and Specifications
This top-of-the-line multi-gun unloader from PA packs a punch with all the right performance numbers:
-
Product Number: YVB4021HT
-
MFG: PA
-
MAX PSI: 4050 PSI
-
MAX GPM: 21 GPM
-
MAX TEMPERATURE: 200°F
-
INLET: 1/2" FPT
-
OUTLET: 1/2" FPT
-
BYPASS: 1/2" FPT
-
SEALS: Dynamic seals - o-rings and teflon runner
-
FEATURE: Multiple guns supported
-
SAFETY: No risk of fittings getting ejected in high-pressure situations
-
MONITORING: 1/4" fitting for pressure gauge
Installation and Reliability
The YVB4021HT is really designed to seamlessly integrate into larger scale pressure washer systems - no fuss. Now, because the MAX GPM is just so high, you really need to make sure all the hoses and lines are properly sized to cope with the 21 GPM flow rate. If not, you could be in for a world of trouble.
The YVB4021HT boasts top-notch quality and some very advanced safety features, which together ensure that it's going to last you a very long time and give you the control you need. By handling all that high flow and offering critical system protection at the same time, this unloader is basically an ideal investment if you want to give a boost to the efficiency and safety of your multi-gun operation. This item is currently in stock and ready to go - just add the quantity you need to your cart and you can complete your purchase right away.
