Compact, Reliable, and Built for Professional Pressure Washing

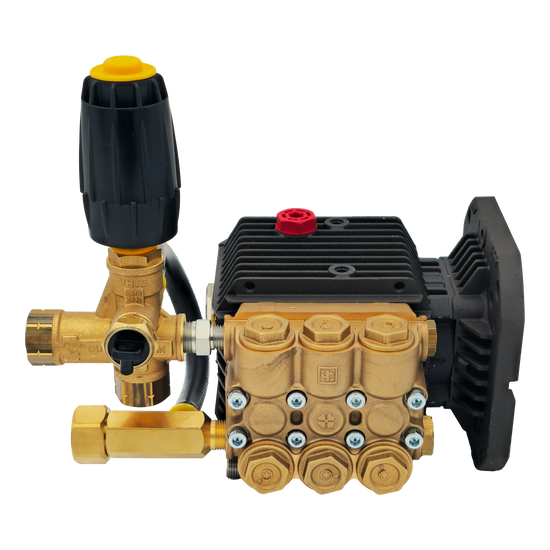

The General Pump TT2035EBF-VRT3-160 Pump Made Ready with Thermal Relief is a complete, ready-to-install solution designed for compact pressure washing systems that demand consistent performance and long service life. With a proven General Pump TT2035EBF triplex plunger pump at its core, a factory-mounted VRT3-160 unloader valve, and an integrated thermal relief system, this assembly is engineered to simplify installation while delivering 3.5 GPM at 2,000 PSI.
Weighing just 18 pounds with a compact 3/4" hollow shaft, the TT2035EBF-VRT3-160 is the perfect balance of size and power. Rated at 5 BHP and designed to operate at 3,400 RPM, it provides steady cleaning performance in portable washers, light commercial systems, and contractor-grade equipment. With its rugged design and preconfigured features, this pump assembly saves time, ensures reliability, and reduces downtime.
Built Around the Trusted TT2035EBF Pump
At the heart of this unit is the General Pump TT2035EBF, a triplex plunger pump known for its reliability and compact design:
-
Triplex Design: Three ceramic plungers provide smoother operation, longer life, and reduced vibration compared to axial cam pumps.
-
Durable Construction: Built with hardened components for resistance against wear and high-pressure water flow.
-
Compact Form Factor: Lightweight at 18 lbs, making it suitable for portable pressure washers and space-limited systems.
-
Consistent Output: Delivers 3.5 GPM at 2,000 PSI, the ideal performance for residential and light commercial cleaning applications.
General Pump’s TT Series is a staple in the industry, trusted worldwide for pressure washer applications where performance and durability matter.
VRT3-160 Unloader – Safety and System Protection
This Pump Made Ready configuration includes a VRT3-160 unloader valve pre-installed. The unloader is one of the most critical components in any pressure washer pump system, and General Pump ensures it’s factory-mounted and ready to go.
-
Pressure Regulation: The VRT3-160 automatically regulates pressure up to 2,000 PSI, protecting the pump and system.
-
Bypass Function: Redirects water flow safely when the trigger gun is released, preventing pump damage.
-
Factory-Matched Setup: Installed and calibrated for optimal performance with the TT2035EBF pump.
-
Durability: Built for long life under continuous use, minimizing maintenance needs.
By including the unloader in this assembly, General Pump eliminates setup guesswork, ensuring safe and reliable operation right out of the box.
Integrated Thermal Relief
The thermal relief system is another vital protection feature of the TT2035EBF-VRT3-160 assembly.
-
Protects Against Overheating: Prevents damage if water recirculates in bypass mode for too long.
-
Automatic Function: Activates to release overheated water and allow cool water to flow in.
-
Extends Pump Life: Reduces wear and damage caused by overheating during idle cycles.
-
Peace of Mind: Ensures long-term system reliability, especially in demanding environments.
This safeguard is particularly important for contractors or operators who may leave systems in bypass mode during jobsite pauses.
Compact but Capable – 3.5 GPM at 2,000 PSI
Despite its compact size and light weight, the TT2035EBF-VRT3-160 pump delivers impressive performance:
-
Flow: 3.5 GPM, an excellent balance for both rinsing large surfaces and applying cleaning detergents.
-
Pressure: 2,000 PSI, enough to cut through tough dirt, grime, and grease without damaging delicate surfaces.
-
Versatility: Suitable for residential, commercial, and light industrial pressure washer systems.
This balance of flow and pressure makes the unit ideal for car washes, siding cleaning, equipment washing, and general-purpose cleaning applications.
Specifications at a Glance
-
Pump Model: TT2035EBF
-
Unloader: VRT3-160 (factory-installed)
-
Thermal Relief: Integrated
-
Shaft Size: 3/4" hollow shaft
-
Horsepower (BHP): 5
-
Weight: 18 lbs
-
Max Pressure: 2,000 PSI
-
Flow Rate: 3.5 GPM
-
RPM: 3,400
-
Manufacturer: General Pump (GP)
3/4" Shaft for Easy Integration
The 3/4" hollow shaft makes this pump easy to pair with a wide range of engines and electric motors commonly used in small to mid-size pressure washer systems.
-
Standard Sizing: Fits common engine drive configurations.
-
Easy Mounting: Reduces setup time for new installations or replacements.
-
Versatile Compatibility: Works across a variety of frame sizes and brands.
This design ensures a straightforward setup process for OEMs and end users alike.
Lightweight but Strong – Only 18 lbs
Weighing just 18 pounds, the TT2035EBF-VRT3-160 is compact and portable without sacrificing durability. Its lightweight design makes it ideal for:
-
Portable Pressure Washers: Compact enough to fit in small residential and commercial units.
-
Contractor Use: Easy to transport, install, and maintain on job sites.
-
OEM Applications: Favored by manufacturers designing compact, reliable washer systems.
Despite its weight, the hardened stainless components and robust construction ensure long service life.
High RPM Performance – 3,400 RPM
The pump is designed to operate at 3,400 RPM, ensuring:
-
Consistent Output: Delivers steady flow and pressure.
-
Smooth Operation: Triplex plunger design reduces vibration even at high speeds.
-
Efficient Performance: Optimized to match standard small-engine drive speeds.
The high RPM rating allows it to be compact while still producing professional-grade performance.
Ideal Applications
The General Pump TT2035EBF-VRT3-160 with Thermal Relief is versatile enough to be used in a wide variety of cleaning applications:
-
Residential Pressure Washers: Driveway cleaning, siding, patios, decks, and outdoor furniture.
-
Commercial Cleaning: Storefronts, vehicles, equipment, and property maintenance.
-
Light Industrial Use: Machinery, tools, and small industrial surfaces.
-
Contractor Systems: Portable washer systems for field cleaning tasks.
-
OEM Equipment Manufacturing: Perfect for integration into new washer designs.
Its balance of performance and portability makes it one of the most flexible pump assemblies available.
Key Benefits
-
Complete Assembly: Includes pump, unloader, and thermal relief — factory-installed and ready to use.
-
Durability: Hardened stainless construction ensures long service life.
-
Safety: Built-in unloader and thermal relief protect both pump and operator.
-
Compact Size: Lightweight and easy to integrate into portable systems.
-
Trusted Brand: Manufactured by General Pump (GP), a global leader in pressure washer pumps.
Safety and Maintenance Considerations
Like all high-pressure pumps, proper use and maintenance extend the life of the TT2035EBF-VRT3-160:
-
Proper Lubrication: Check oil levels and change as recommended by General Pump.
-
Monitor Water Supply: Ensure sufficient water flow to prevent cavitation.
-
Avoid Dry Running: Never operate the pump without water.
-
Use Correct Nozzles: Match nozzle size to flow and pressure ratings.
-
Thermal Protection: The built-in thermal relief valve prevents overheating but avoid extended idle times in bypass mode.
These simple precautions keep the pump running reliably for years.
Comparison to Other Pumps
Compared to larger, higher-output General Pump models, the TT2035EBF-VRT3-160 is designed for smaller, more compact systems.
-
Lighter and Easier to Install: At 18 lbs, it is far more portable than heavy industrial pumps.
-
Balanced Output: With 3.5 GPM at 2,000 PSI, it provides cleaning power without overwhelming delicate surfaces.
-
Factory-Ready Configuration: Pre-installed unloader and thermal relief eliminate additional setup time.
This makes it an excellent choice for contractors, homeowners, and OEMs looking for reliability without unnecessary complexity.
Trusted by Professionals Worldwide
The General Pump TT2035EBF-VRT3-160 Pump Made Ready with Thermal Relief is designed with professionals in mind. By combining the reliability of the TT2035EBF triplex pump, the safety of the VRT3-160 unloader, and the protection of a thermal relief system, this assembly delivers a complete, ready-to-install solution.
Compact yet powerful, lightweight yet durable, it’s trusted by contractors, OEM manufacturers, and property managers worldwide for its balance of performance and reliability. Whether you’re building a new pressure washer system or replacing an existing pump, the TT2035EBF-VRT3-160 is built to perform.
