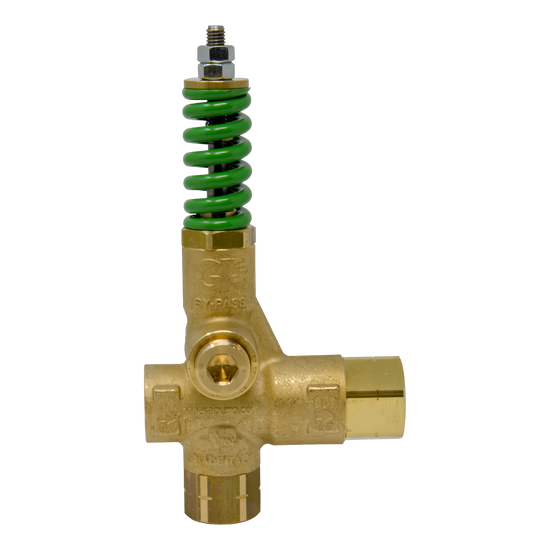

The YU21405 is a beast of a Pressure Washer Unloader Valve - a heavy-duty powerhouse that can handle the toughest industrial-grade pressure washing systems.
Built by General Pump, a well-respected name in high-performance fluid handling components, this unloader is designed to crank through massive volumes of water with ease, capable of managing flows up to 21 GPM while keeping the pressure dialed in at a steady 4500 PSI. That makes it the go-to choice for multi-gun setups, heavy-duty tandem pressure washers and any job that needs sustained, high-volume cleaning power.
This valve is the brain of your pressure washer pump - the one that keeps everything running smoothly when the operator lets go of the spray gun trigger. The YU21405 picks up on the restriction right away and sends the water back to the pump inlet or a storage tank - which is what we call the bypass cycle. It's a clever bit of engineering that stops the pump from hammering away at a closed valve, which would just lead to a whole mess of temperature spikes (thermal bypass) inside the pump head.
Product Benefits & High-Flow Design
The main advantage of the YU21405 is its ability to handle those huge volumes of water without losing a step. You see, standard unloader valves often start to choke back on larger GPM systems, but not this one - even at its maximum flow of 21 GPM, its design ensures that the pressure stays under control.
Protection for High-Volume Systems: For those who are using high-flow triplex pumps, the ability to bypass that kind of water volume is vital to keeping the pump running for years to come. The YU21405 takes care of that for you, protecting the expensive pump components from damage caused by those pesky pressure spikes and overheating. It keeps the system running cleanly and consistently, even through long duty cycles.
High-Temperature Versatility: Built from materials that can take the heat, this unloader is rated for maximum water temperatures of 200°F. That makes it perfect for use with those fancy hot water pressure washing systems where you need to control high-temperature, high-pressure flow in order to get the job done right.
Green Spring Configuration: Now, the internal spring is a special feature of this unloader - the Green Spring that is the defining characteristic of this unloader’s specific pressure range and activation timing. And that's not just a fancy name - this spring is factory-calibrated to deliver reliable performance just right for jobs that demand high GPM requirements.
Key Features & Specifications
This industrial-grade unloader valve gives you top-tier performance and is compatible with a whole range of systems:
Installation & Reliability
The YU21405 is built for integration into your fixed or mobile industrial pressure washing skids. Those generous Dual 1/2" FPT connections on both the inlet and bypass ports make it easy to hook up to the plumbing required to move that 21 GPM. Proper installation is key to getting the bypass loop to work right and prevent those nasty pressure irregularities and cavitation issues.
Being built by General Pump, the YU21405 uses materials chosen for their chemical resistance, thermal resilience, and ability to handle all that constant pressure cycling at high levels. It's a robust mechanism and high-capacity connections that guarantee long-term performance and keep maintenance to a minimum. This unloader valve is a smart investment for contractors and operations running high-GPM, high-pressure systems who can't afford to take a hit due to component failure.
