Control, Reliability, and Smooth Flow

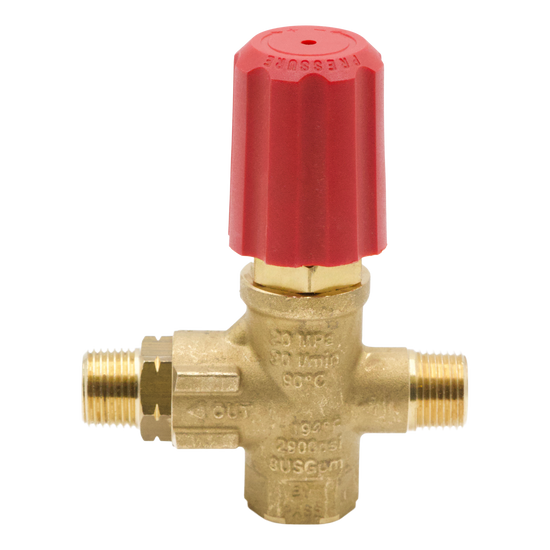

The VR54 Pressure Washer Unloader 8 GPM 2900 PSI is a high end unloader designed and built by Mecline for precise control of pressure and reliable operation on all cleaning systems. A replacement for the MV520, this unit has a hexagonal check valve for smoother flow, a reinforced body with hex wrench grip in the bypass area and an ergonomic plastic adjustment knob to make fine tuning your desired pressure easy and intuitive.
With 8 GPM max flow, 2900 max PSI and 194°F max temp this pressure washer unloader is a must have for smooth, consistent and safe operation. It has a 1/4" FPT gauge port, 3/8" MPT inlet, 3/8" FPT bypass and 3/8" MPT outlet so you have flexibility to connect hoses, fittings and accessories.
Product Specifications
-
Product: VR54
-
Part Number: 4072000041
-
Gauge Port: 1/4" FPT
-
Inlet: 3/8" MPT
-
Bypass: 3/8" FPT
-
Outlet: 3/8" MPT
-
Max GPM: 8
-
Max PSI: 2900
-
Max Temperature: 194°F
-
Manufacturer: Mecline
-
Replaces: MV520
Features:
-
Hexagonal check valve for smoother flow.
-
Reinforced body with hex grip at bypass for easier servicing.
-
Fully removable pressure regulating unit for simplified maintenance.
-
Ergonomic plastic adjustment knob and ring nut.
-
Uses the same repair kit as the MV520 and MV540.
How the VR54 Works
The VR54 is a trapped pressure unloader – a type of unloader valve that regulates water flow and pressure by controlling whether the water is sent to the nozzle or diverted back into bypass mode.When the trigger gun is pulled the water flow goes to the nozzle at the set pressure. When the trigger is released or depressed the trapped pressure unloader valves redirect the water flow into the bypass to prevent damage to the pump and system. This prevents leaks, reduces downtime and extends pump life.
The VR54 is also a flow actuated unloader and pressure actuated device, it can respond to changes in water flow when the trigger pulled condition changes and to pressure fluctuations in the system. This hybrid capability makes it very versatile in residential and commercial applications.
Adjusting and Setting Pressure
The VR54 has a threaded adjustment ring and ergonomic plastic knob. By turning the knob in small increments you can increase or decrease the operating pressure until you reach the desired operating pressure.
This ensures precise set point control whether you’re doing light duty jobs like washing cars or heavy duty jobs like cleaning concrete or commercial buildings. The adjusting process is simplified with the ergonomic design and the nut and ring system that prevents accidental loosening.
A pressure gauge can be inserted into the 1/4" port to confirm the desired pressure has been reached so you have reference points for safe operation.
Designed for Maintenance and Long Term Use
The VR54 is designed for professionals. The reinforced body and hex grip at the bypass makes servicing and removal easier. The entire pressure regulating unit can be accessed from above so maintenance is simple.
In case of wear the VR54 uses the same repair kits as the MV520 and MV540 which are common. This reduces downtime, lowers the price of parts and makes it easy to continue using the same machine without costly downtime.
Applications and Benefits
The VR54 fits into any pressure washer setup from general pump equipped models to other popular machines.
Applications:
-
Residential pressure wash jobs like cars, decks and outdoor furniture.
-
Commercial cleaning jobs on siding, concrete and commercial buildings.
-
Industrial systems up to 8 GPM and 2900 PSI.
Benefits:
-
Smooth flow with hexagonal check valve.
-
Consistent performance at desired pressure.
-
Simplified adjustment for varied tasks.
-
Easy to tighten fittings reduces leaks and extends pump life.
-
Reduced damage risks with trapped pressure unloader design.
Operation ExampleExample 1: Trigger pulled, water flow goes to the nozzle at full PSI.
Example 2: Trigger released, trapped pressure builds and unloader diverts flow back to the bypass, protecting the pump. Example 3: Spring and check valve mechanism relieves tension, flow resumes smooth once trigger pulled again.
This cycle repeats every time the gun is used so you can work safely and maintain consistent performance.
Compatibility and Cross Reference
This part number is cross referenced on most dealer pages, general pump distributors and shop catalogs. Always search by part number to ensure compatibility. If you can’t find your current unloader’s number, check the line of repair kits or series documentation for more cross reference information.
Buying and Price
Available for sale at competitive price, the VR54 is in stock and ready to ship. On most distributor pages you can add to cart, view price and choose the right unit for your machine.
By clicking on product pages you can find more information, read reviews and confirm compatibility before ordering. With general pump backing and Mecline manufacturing the VR54 is a great value.
Why Choose the VR54 Unloader
-
Trapped pressure unloader valves for safe and reliable operation.
-
Flow actuated unloader for smoother water flow.
-
Reinforced body design with hex grip for durability.
-
Ergonomic knob for easy adjustment of set pressure.
-
Compatible with general pump and other machines.
-
Shared repair kits for servicing.
-
Designed to reduce damage, leaks and downtime.
The VR54 Pressure Washer Unloader 8 GPM 2900 PSI – Part Number 4072000041 is a rugged, versatile and dependable unloader for controlling pressure and water flow in demanding pressure washer systems. With trapped pressure unloader and flow actuated unloader capabilities, reinforced body and user friendly adjustment features it delivers the reliability professionals need.
Whether you’re running a general pump setup, servicing a commercial machine or cleaning concrete and outdoor furniture the unloader will provide consistent performance and extended pump life.Add to cart, view price and choose. Replaces MV520, same repair kit as MV520 and MV540.
