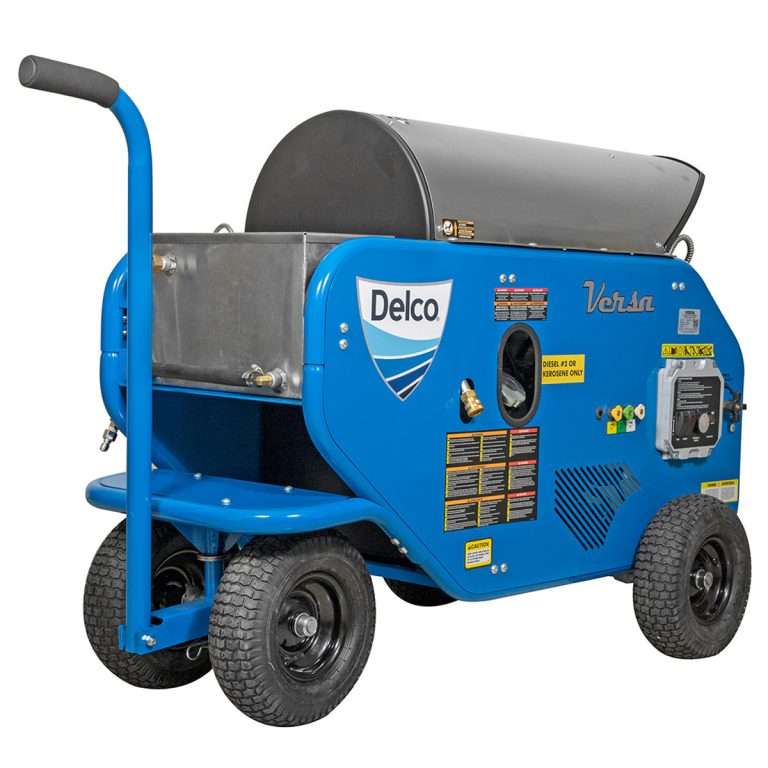

The Versa series, available in either powder-coated or stainless steel frames, stands as a dependable option for a wide range of cleaning equipment needs. Its superior quality and unique design set this horizontal coil electric cleaning system apart, making it the best in its class.
Unit Includes
- Hose
- Lance
- Trigger gun
- Nozzles: 15°, 25°, and 40°
- Up stream low-pressure soap injector
Limited Warranty
- All Units – 10yr Frame, 5yr Pump, 1yr Motor
Features
- 1750 RPM slow speed
- NEMA 4X electrical enclosure with burner on/off rocker switch, and hour meter, time delay-shut off
- Large capacity diesel fuel tank
- Horizontal heat exchanger with stainless steel housing
- 120V or 230V burner
- Burner fuels: No. 1 / No. 2 diesel or kerosene
Optional Accessory
(sold separately and available upon order)
| Part | Dscription |
|---|---|
| 7110785 | Auto start/stop shut off |
Pump
UDOR® Industrial Triplex Pump
- Forged brass manifold
- Thermal relief valve
- Ceramic-coated plunger sleeves
- External unloader with bypass hose
Frame
- Heavy-duty 1-1/2" round tubular steel design
- Powder-coated frame and panels for corrosion resistance (65381, 65375, 65377, 65378)
- Stainless steel frame and panels (65382, 65376, 65379, 65380)
Hose
- 3/8" x 50' steel-braided Armor Hose®
Nozzles
- Quick-connect nozzles for a variety of cleaning applications
Wheels
- 13" Premium pneumatic
Dimensions
- All Units – L 35" x W 30" x H 43"
