Industrial

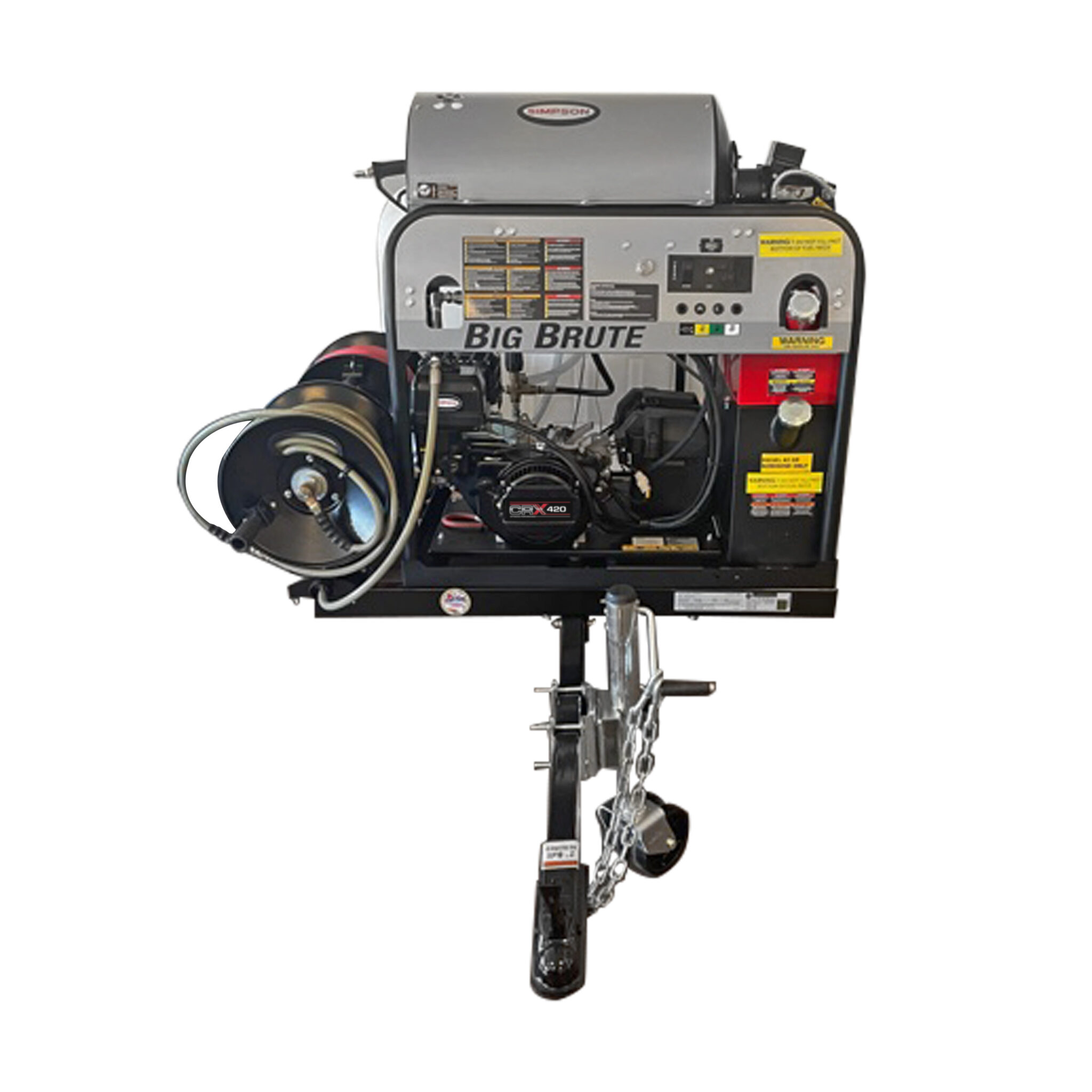

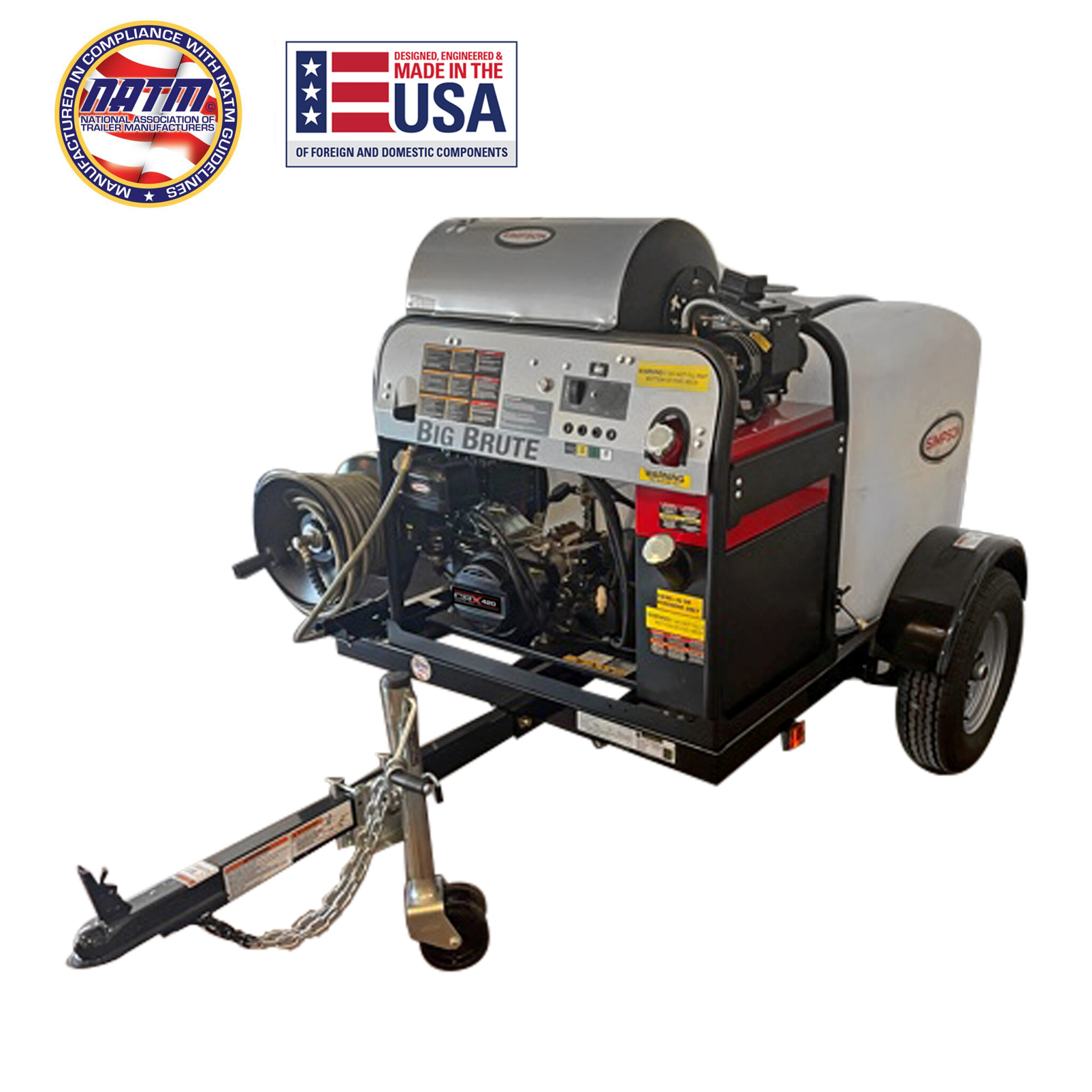

Stage 1C Hot Water

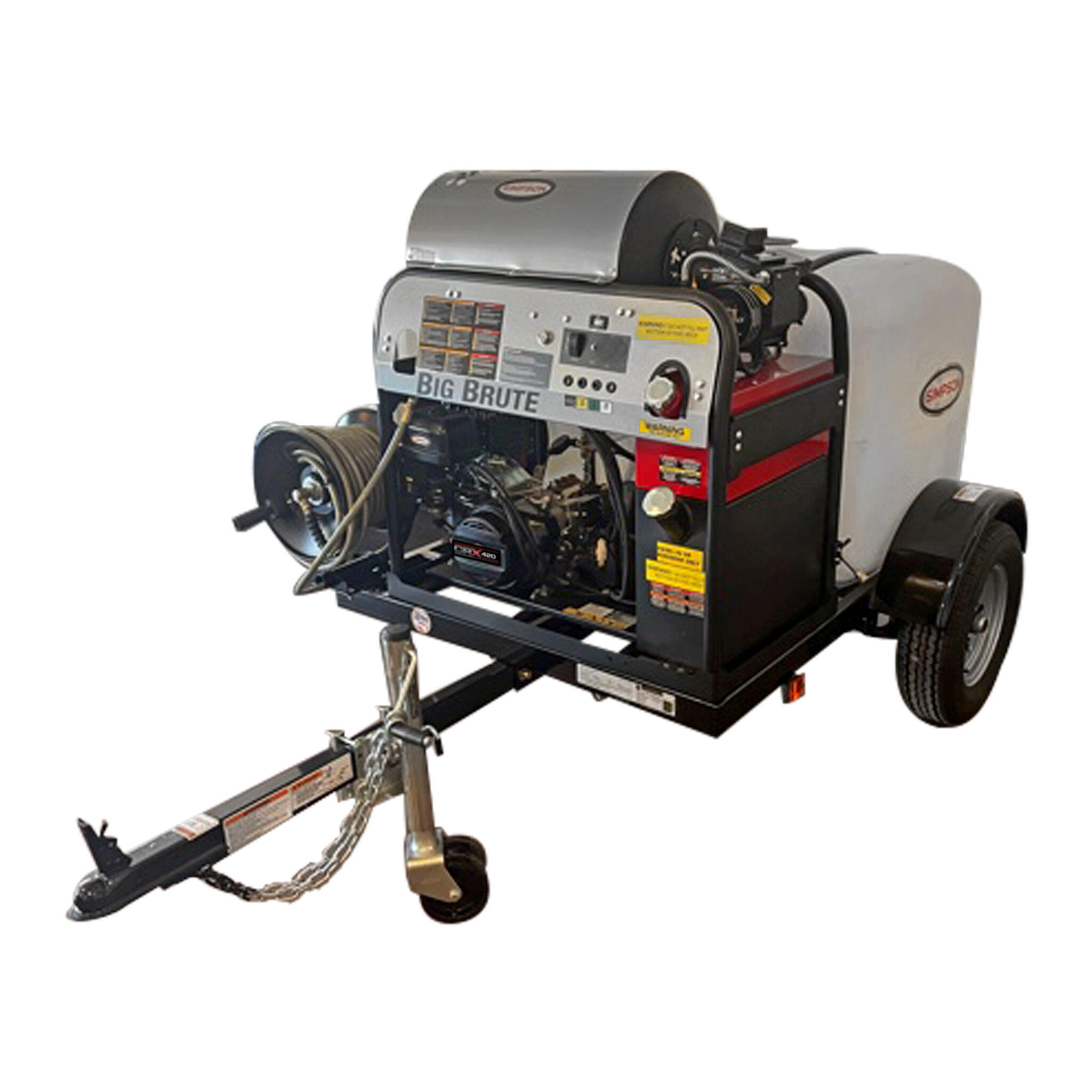

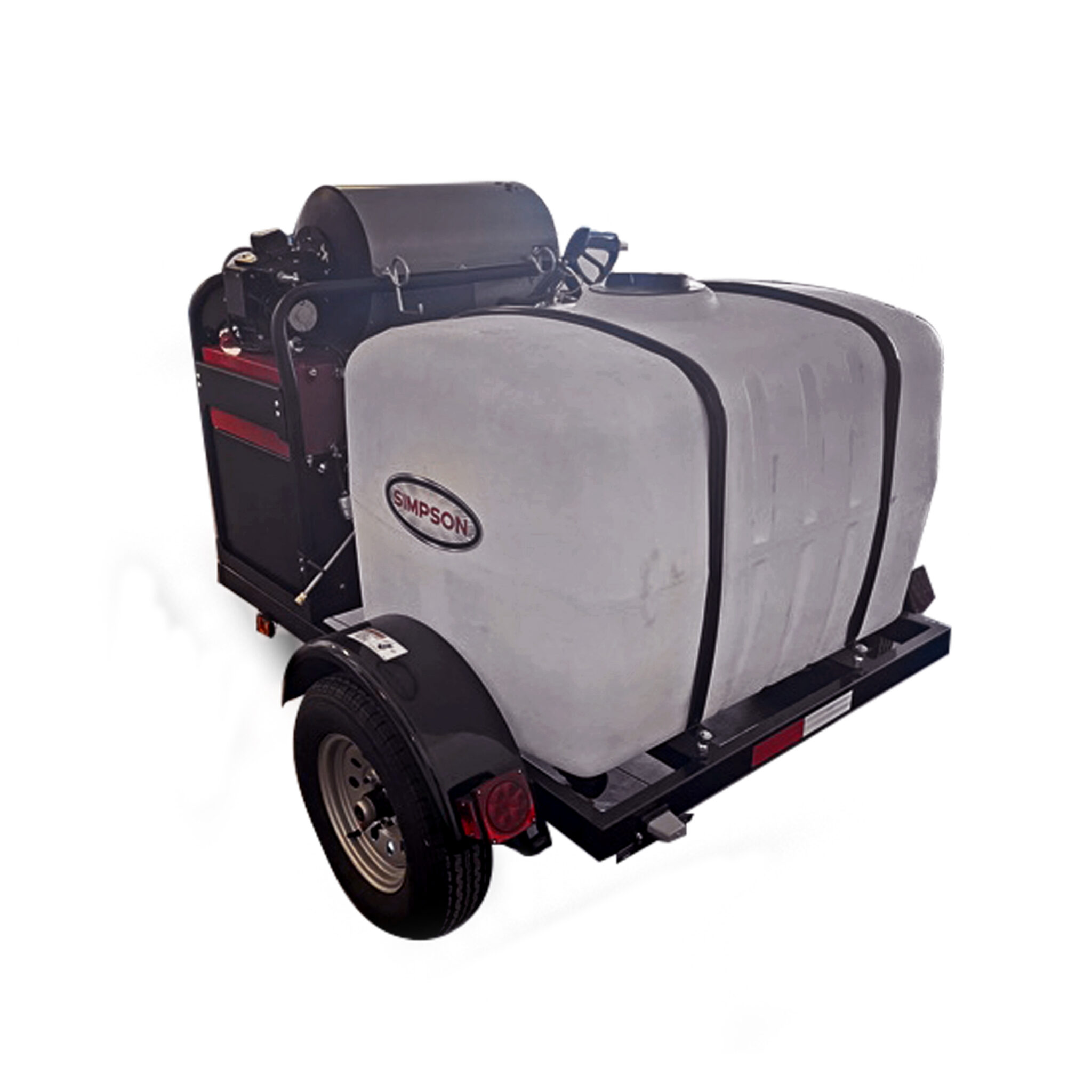

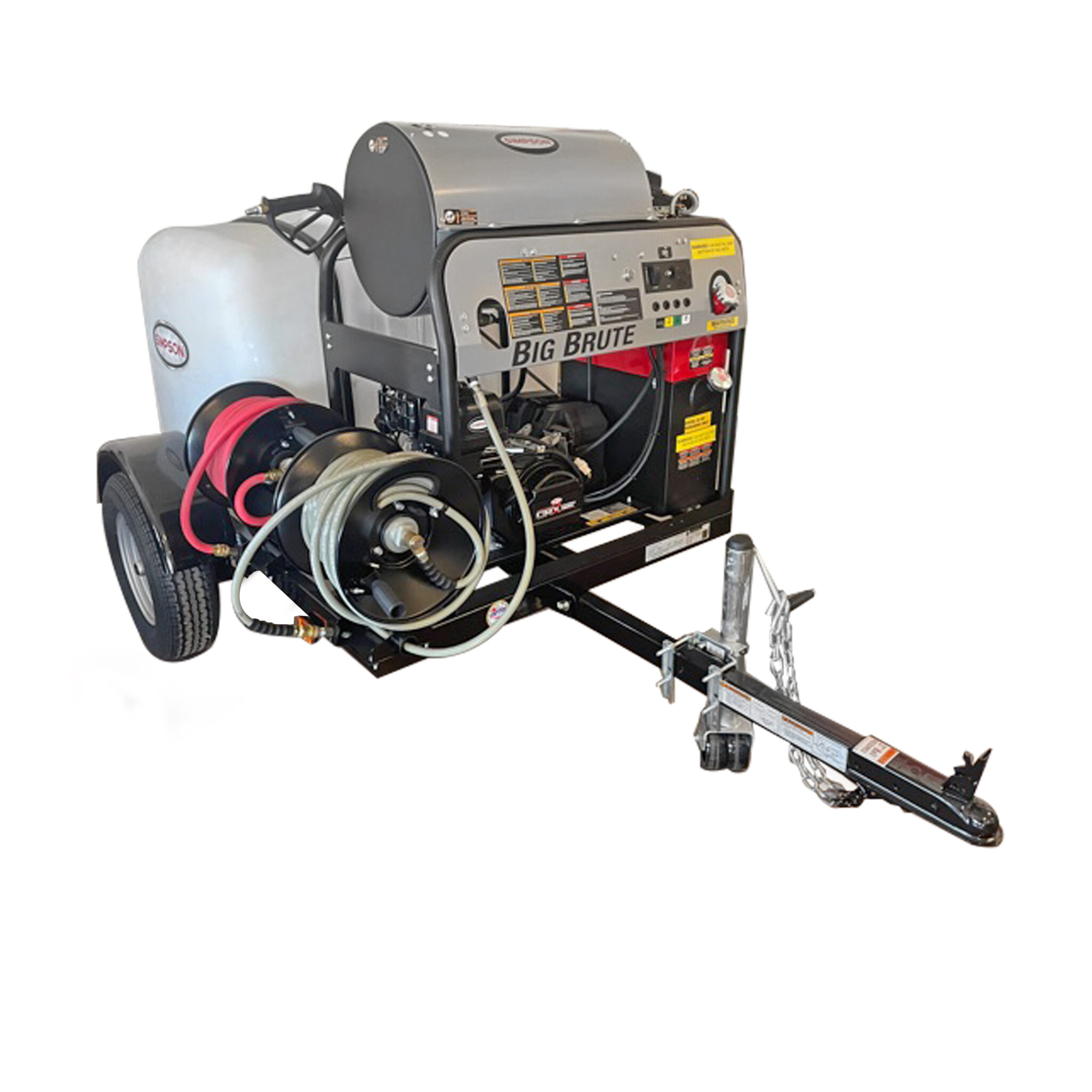

SIMPSON®’s hot water mobile pressure washing trailers deliver exceptional cleaning power for demanding commercial applications where cold water simply isn’t enough. Built to cut through grease, oil, grime, and other stubborn contaminants, these products are suited for contract cleaners, mobile detailers, municipalities, resorts, and many other professionals. SIMPSON trailers are NATM certified as an over-the-road pressure washer system designed to perform wherever tough jobs need to be done.

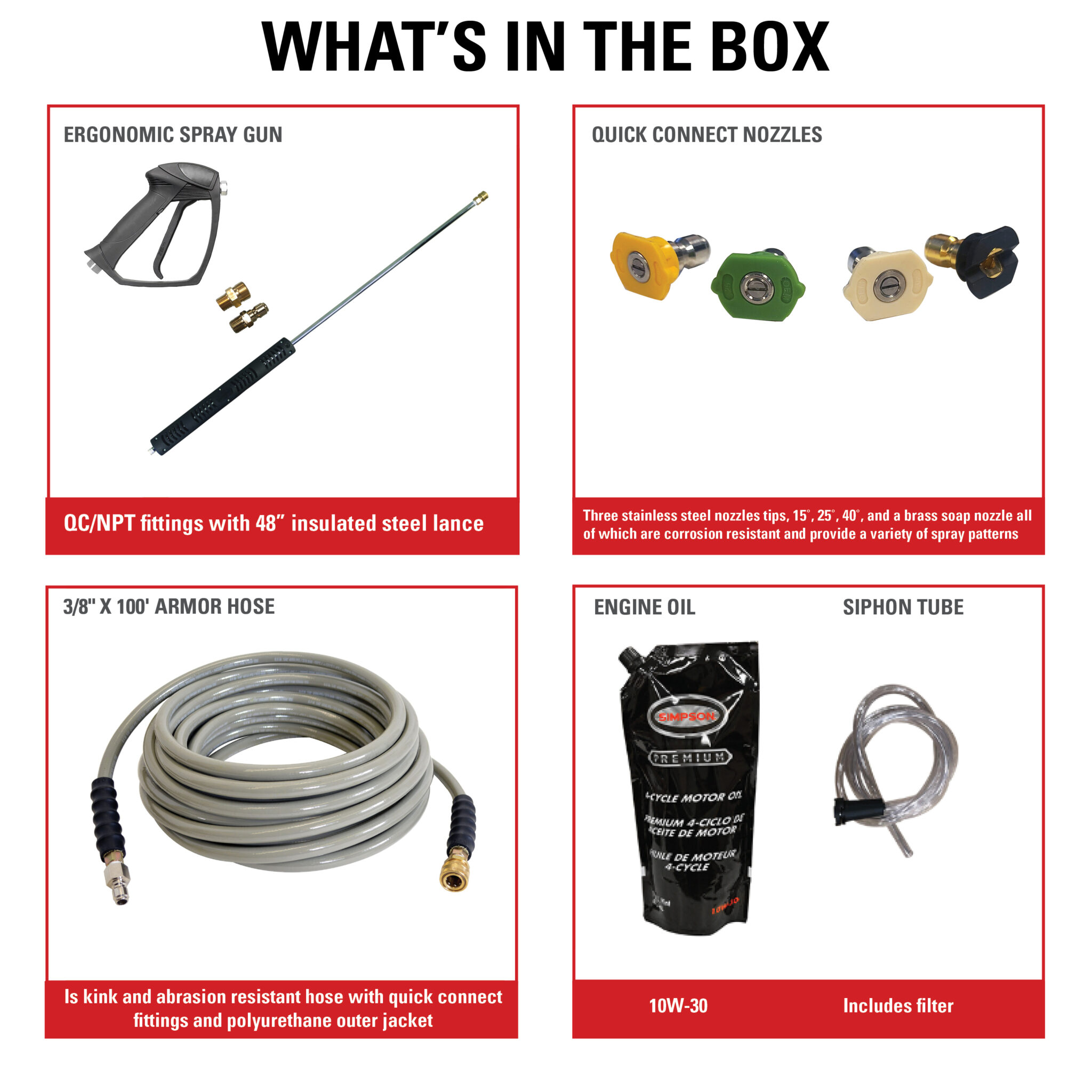

Unit Includes
- Hose
- Lance
- Trigger Gun
- Nozzles: 15°, 25°, 40°, and Soap
- Engine Oil 10W-30
- Low-Pressure Soap Injector
Limited Warranty
| All Units |
1-Year Trailer Frame, 5-Year Pump, 3-Year Engine |
Optional Accessories (sold separately & available upon order)
| Part # |
Description |
Price |
| 80657 |
Analog Thermostat Kit |
|
| 80646 |
Steam Kit (only for Stage 1C trailers) |
|

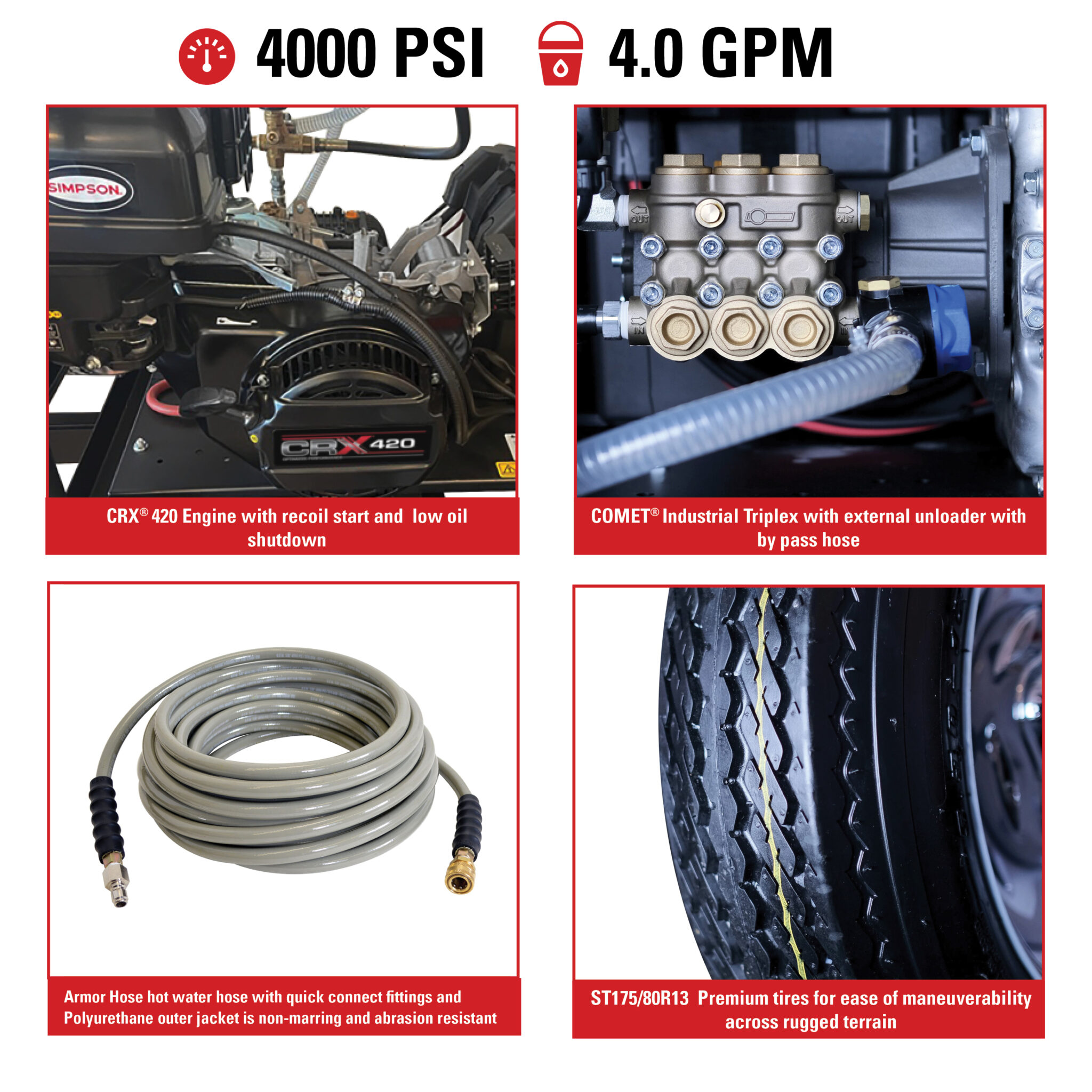

Pumps
COMET Industrial Triplex
- 3450 RPM full speed (stage 1)
- 1750 RPM slow speed(stage 2 & 3)
- Thermal relief valve
- Forged brass manifold
- Ceramic-coated plunger sleeves
- External unloader with bypass hose to tank
General Pump® Industrial Triplex
- 1750 RPM slow speed
- Thermal relief valve
- Forged brass manifold
- Ceramic-coated plunger sleeves
- External unloader with bypass hose to tank
UDOR® Industrial Triplex Pump
- 1750 RPM slow speed
- Forged brass manifold
- Thermal relief valve
- Ceramic-coated plunger sleeves
- External unloader with bypass hose to tank
Hoses
Steel-braided Armor Hose®
Supply Hose
- Sizes:
3/8" x 75' – Stage 1C
3/8" x 90' –Stage 2s and 3s
High-Pressure Hose Reel
- Sizes:
100' – Stage 1Cs
200' –Stage 2s and 3s
Additional Specs
Trailer Frame
- 6" powder-coated C-channel
Lighting

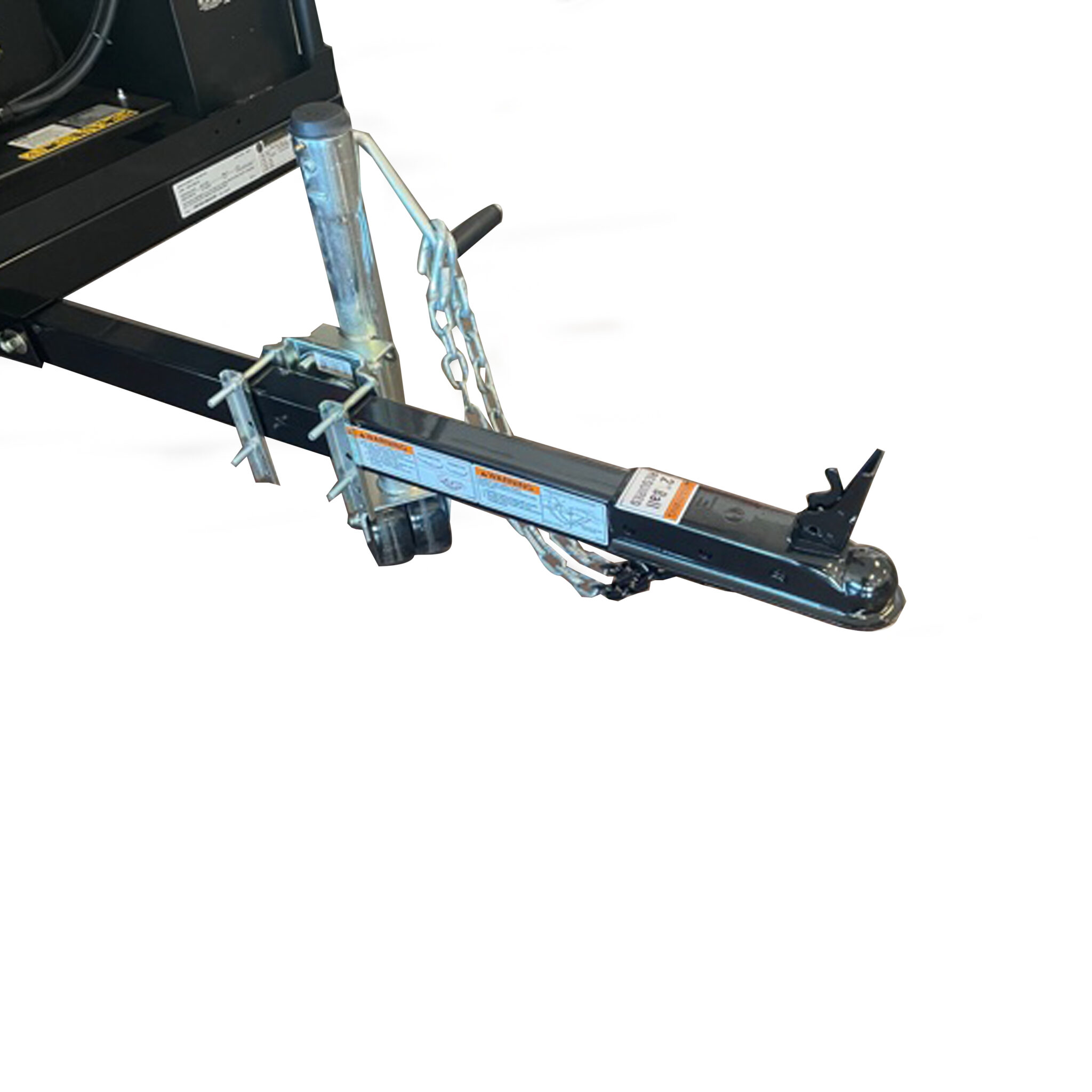

Trailer Hitch Ball Size
- 2" ball for stage 1C and 2
- 2-5/16" ball for stage 3 trailers
120V Burner (95157 only)
- 3400W generator
- 120V duplex outlet

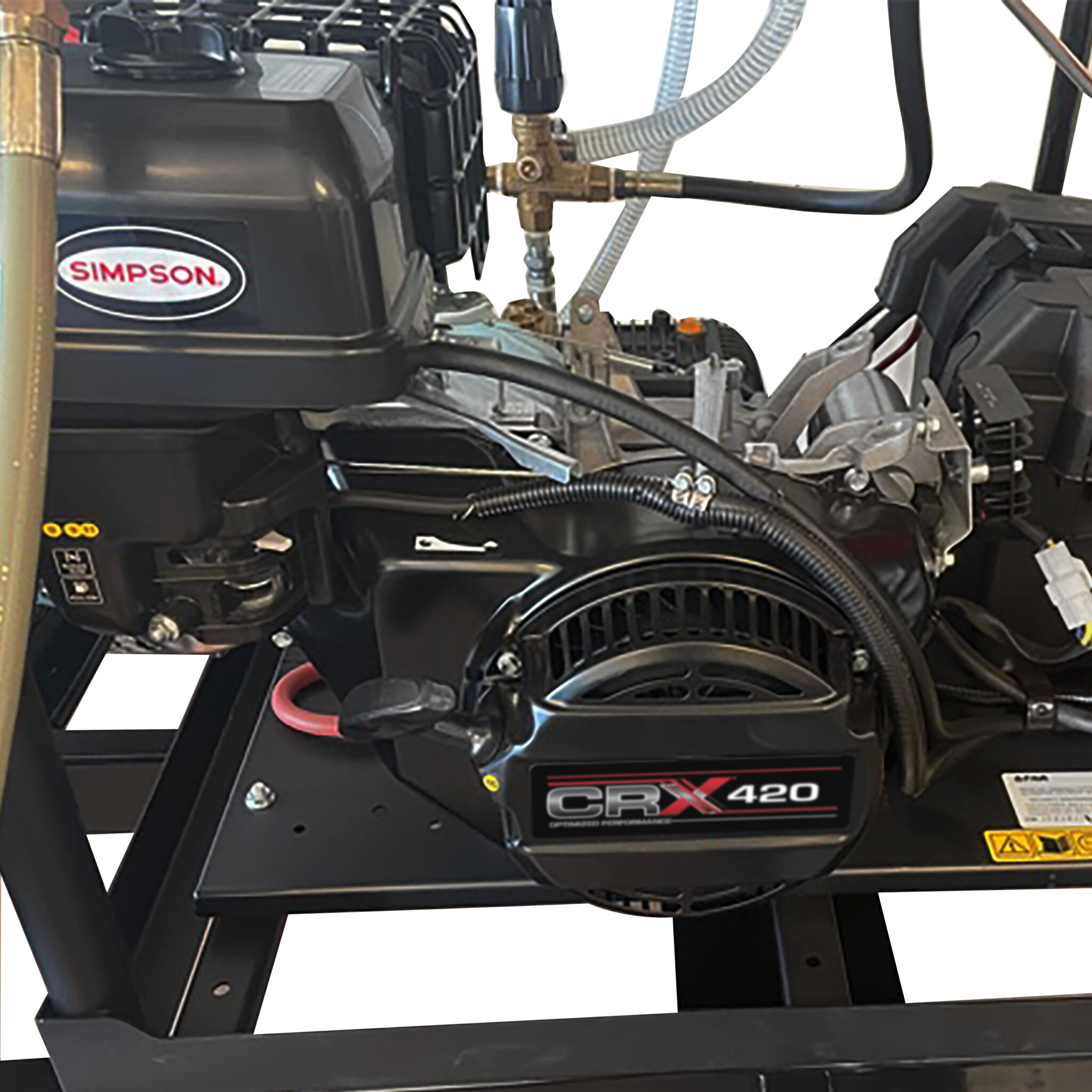

Engines
| Engine |
Displacement |
Fuel Tank Capacity |
| CRX® 420 |
420cc |
7.5 gal. |
| CRX® 680 |
679cc |
7.5 gal. |
| HONDA® GX390 |
389cc |
7.5 gal. |
| HONDA® GX690 |
688cc |
7.5 gal. |

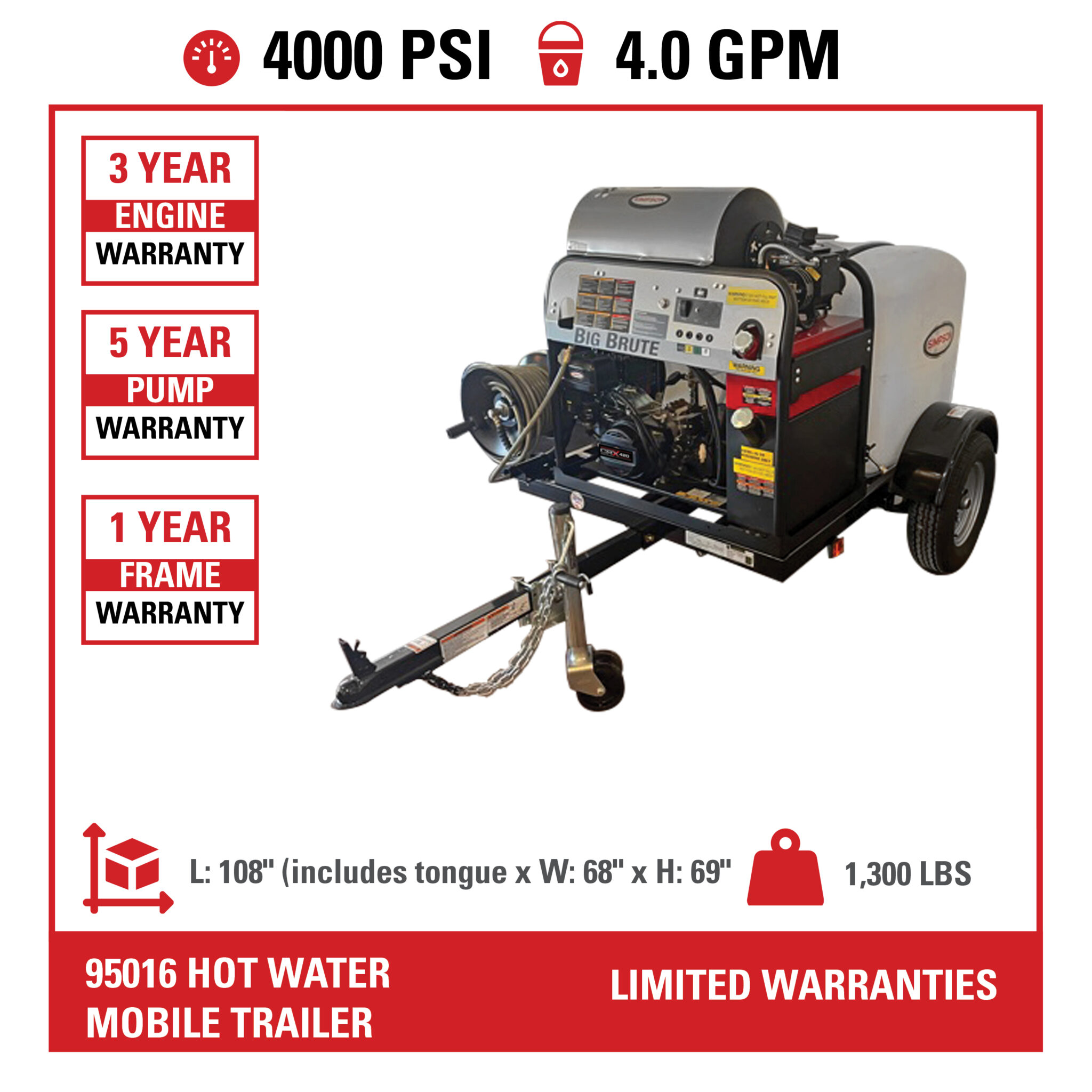

Dimensions & Weight
| 95005, 95016 |
L 108" (includes tongue) x W 68" x H 69" 1300 lbs. |
| 95158, 95166 |
L 156" (includes tongue) x W 68" x H 62" 1500lbs. |
| 95157, 95169, 95170, 95171, 95173 |
L 192" (includes tongue) x W 90" x H 62" 3500 lbs. |
| 95156 |
L 192" (includes tongue) x W 90" x H 62" 3800 lbs. |
