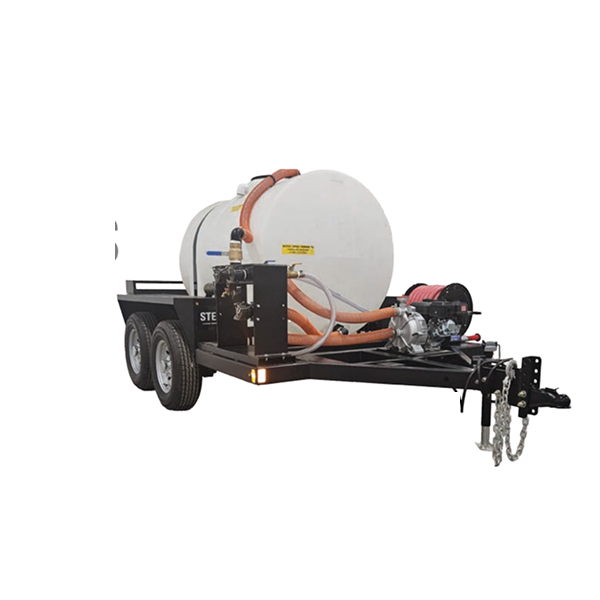

SWT Water Trailer Series Power Washer SWT525172HSB - Part#95414

SWT Water Trailer Series Power Washer SWT525172HSB - Part#95414

Heavy Commercial Freight Delivery

Direct Manufacturer OEM Certified

Factory Assembled & Bench Tested

Power Washers

SWT Water Trailer Series Power Washer SWT525172HSB - Part#95414

Part / SKU: 95414

(5.0) Verified Commercial Equipment

Contractor Direct Price

$9,093.50

In Stock · Ready to Ship

SWT Water Trailer Series Industrial Limited Warranty All Units 1-Year Frame, 5-Year Pump, 3-Year Engine Optional Accessories (sold separately & available upon order) Part # Description Price 80282 2-5/16" Adjustable Ball...

Qty

Action

Compare

Wishlist

Order by Phone: 888-990-WASH

Need Help Sizing or Configuring Equipment?

Our commercial power washing specialists are on standby. Call 888-990-WASH (Mon–Fri 8am–6pm EST).

Commercial Equipment Spec Sheet

Flow Rate: 158 GPM
Engine Make: CRX
Pump Type: ar Pump
Tires: ST225-75R15
Engine: CRX® 210*
Trailer Size: 13' Overall Length
Axle Rating: 200 lbs. (x2)
Water Tank Size: 525 gal.
Brake Type: Hydraulic
Pump: 2" Semi-Trash

SWT Water Trailer Series

Industrial

Limited Warranty

All Units

1-Year Frame, 5-Year Pump, 3-Year Engine

Optional Accessories (sold separately & available upon order)

Part #	Description	Price
80282	2-5/16" Adjustable Ball Coupling Kit
80283	2" Adjustable Ball Coupling Kit
80285	Pintle-Eye Hitch Kit
80280	Includes a Heavy-Duty Hose Reel, 50' of 1" Rubber Fire Hose, a 1" Fire Hose Nozzle, Mounting Hardware and Plumbing

Engine

Engine	Displacement	Fuel Tank Capacity
CRX® 210	208cc

Dimensions

95414	L 153" (includes tongue) x W 87" x H 84" 2500 lbs. (7000 lbs. GVW)
95415	L 157" (includes tongue) x W 87" x H 84" 2500 lbs. (7000 lbs. GVW)
95426, 95427	Final dimensions and weight coming soon

Special Features

Semi-Trash Pump

2" suction and discharge that handles solids up to 9/16" diameter
Cast-iron impeller and volute
Silicon-carbide mechanical seals
Die-cast aluminum pump housing
Flow: 158 GPM
Suction head lift: 25'

Plumbing

Hydrant fill with 25" x 2-1/2" hose
Dual rear spray heads
Garden hose connector
Simplified manifold discharge system
20' suction hose
50' discharge hose

Water Tank

Elliptical low profile 3/8-inch thick polyethylene
16" manhole with 4-inch vent and sump pump

Trailer

NATM approved
6" C-channe
13" under-clearance at axle
5000 lb. side-mount crank jack
Dual-leaf spring suspension
LED lighting
Large rear storage basket
Adjustable height hitch

Water Tank

Elliptical low profile 3/8-inch thick polyethylene
16" manhole with 4-inch vent and sump pumpt
