Industrial

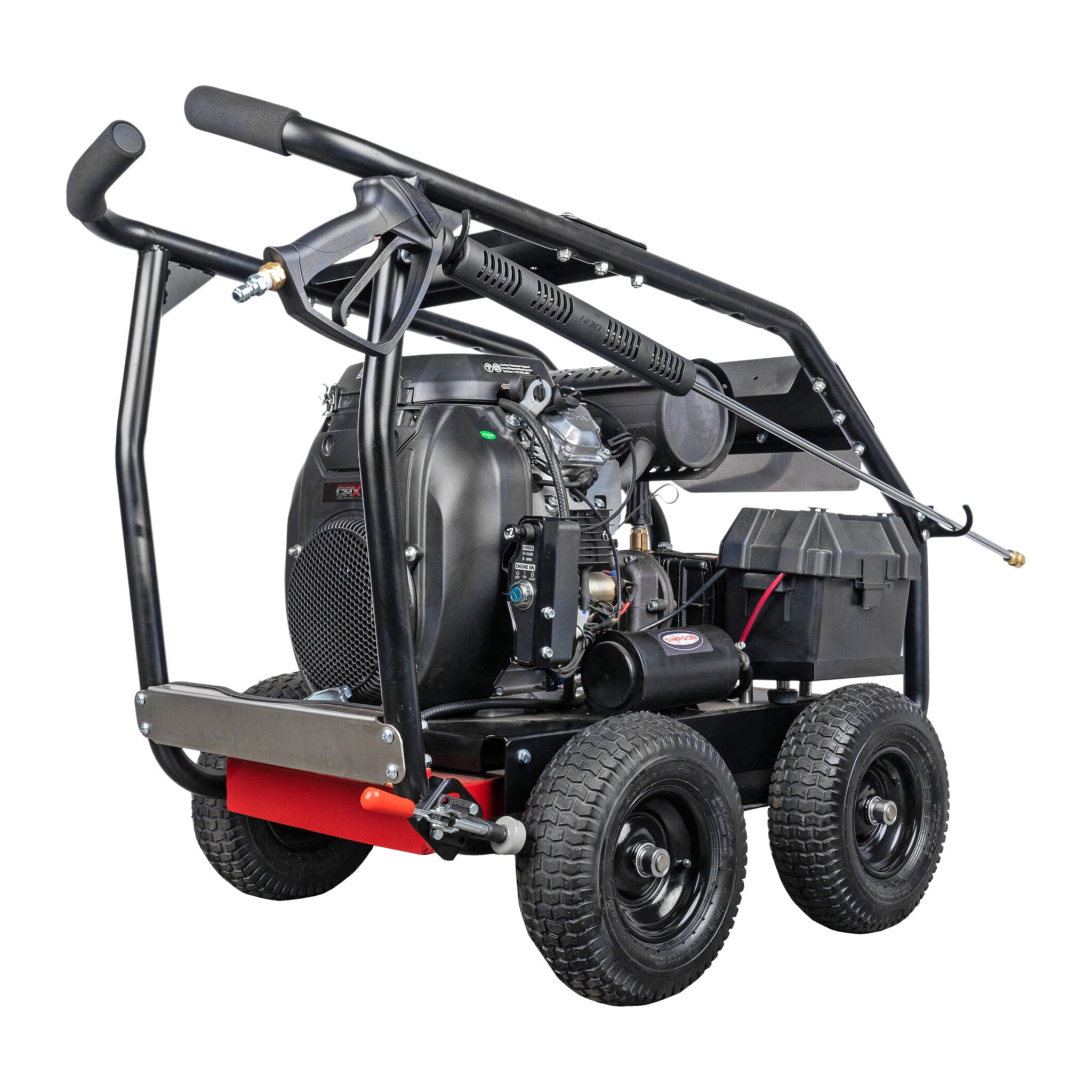

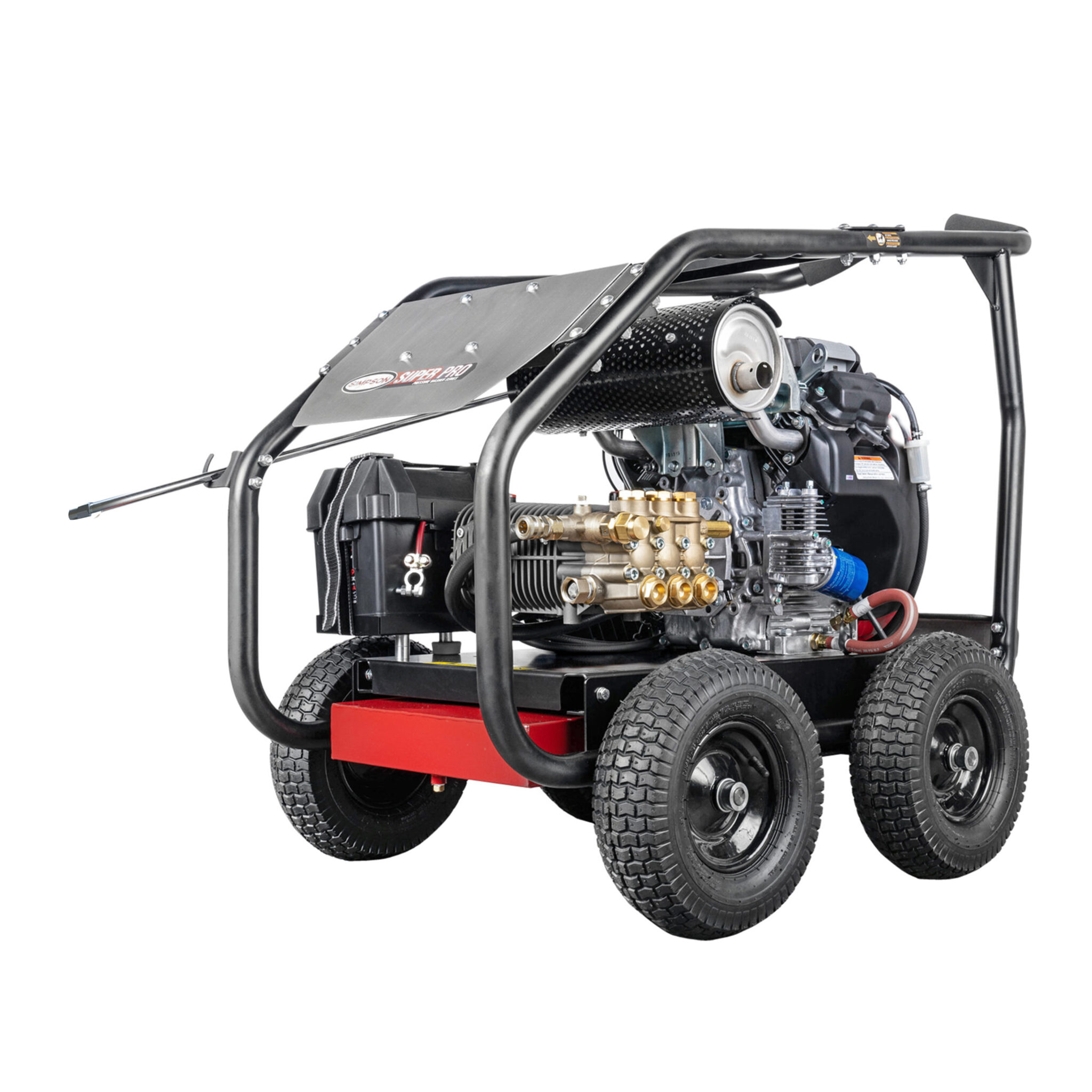

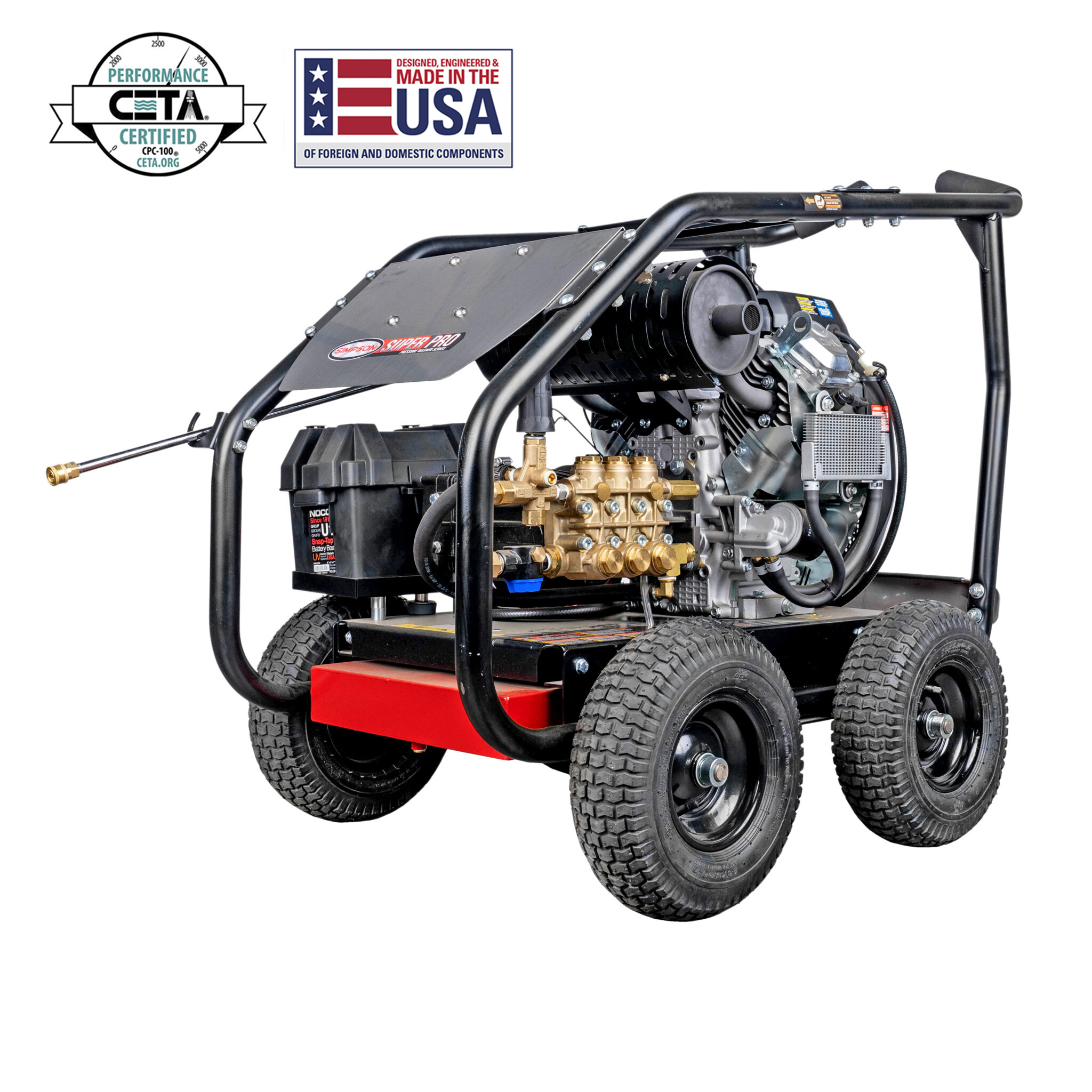

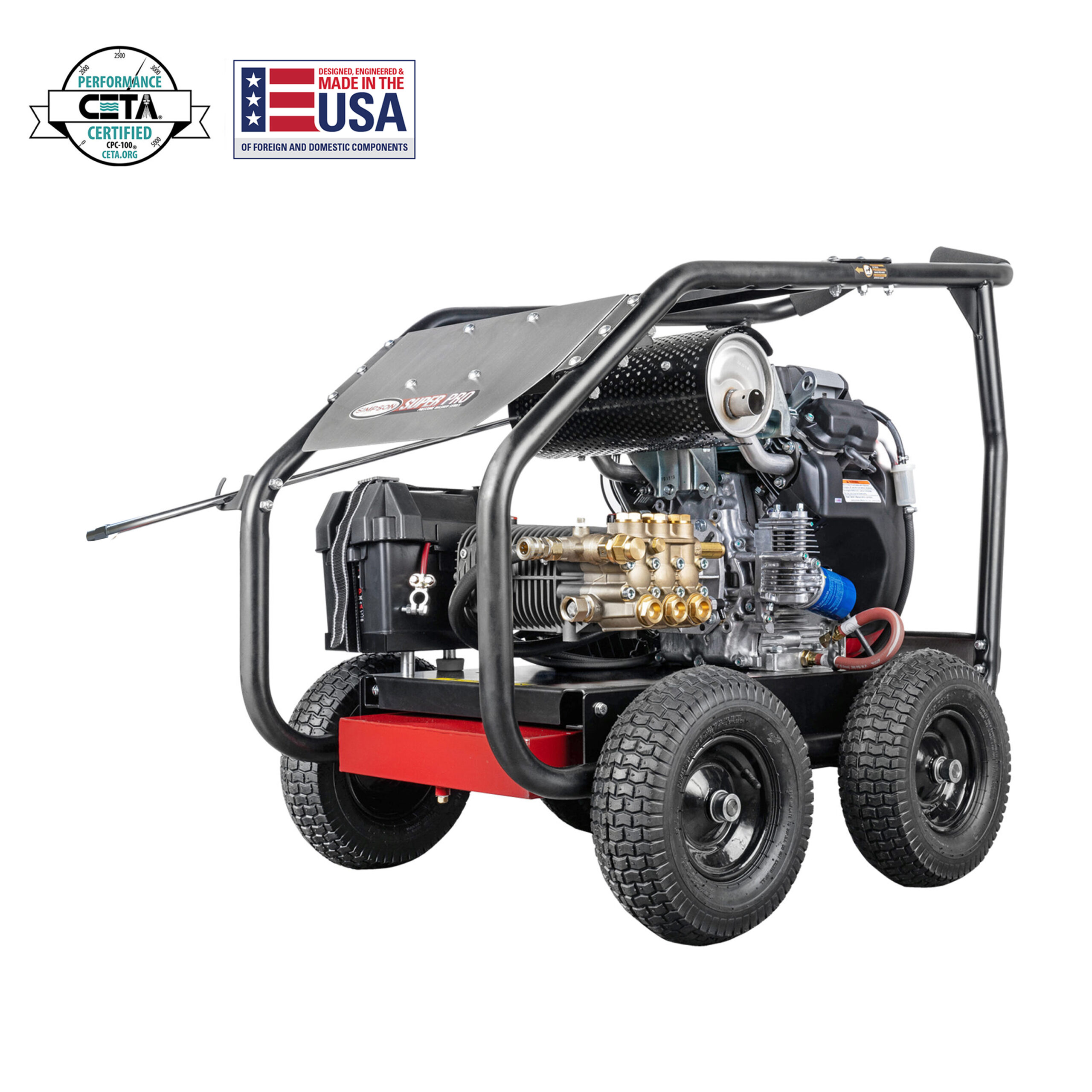

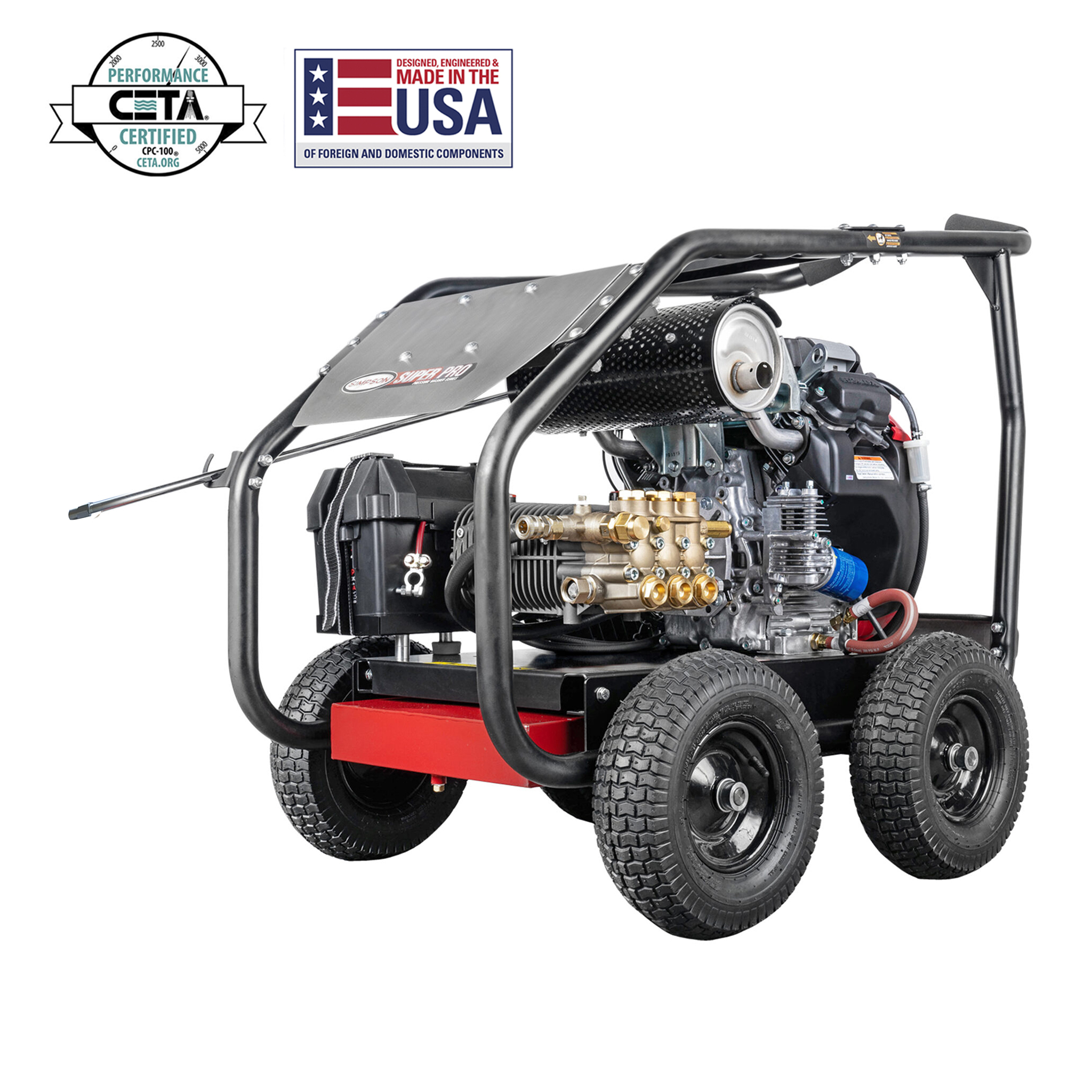

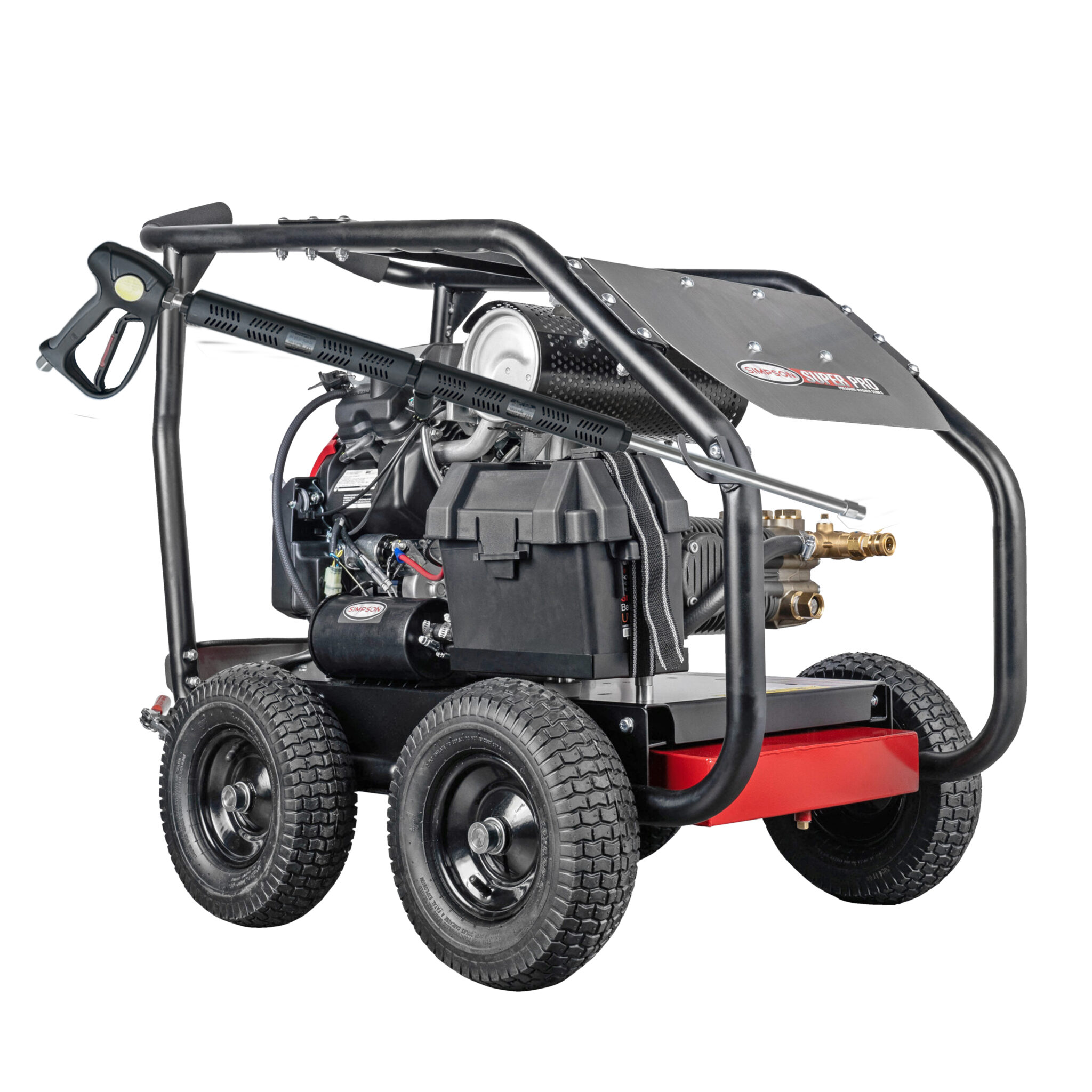

Designed for resilience on tough job sites, the SIMPSON® Super Pro Roll Cage Series feature high-quality pumps and engines encased in protective four-wheeled roll cages. These machines ensure stability and facilitate easy transportation across rugged terrains.

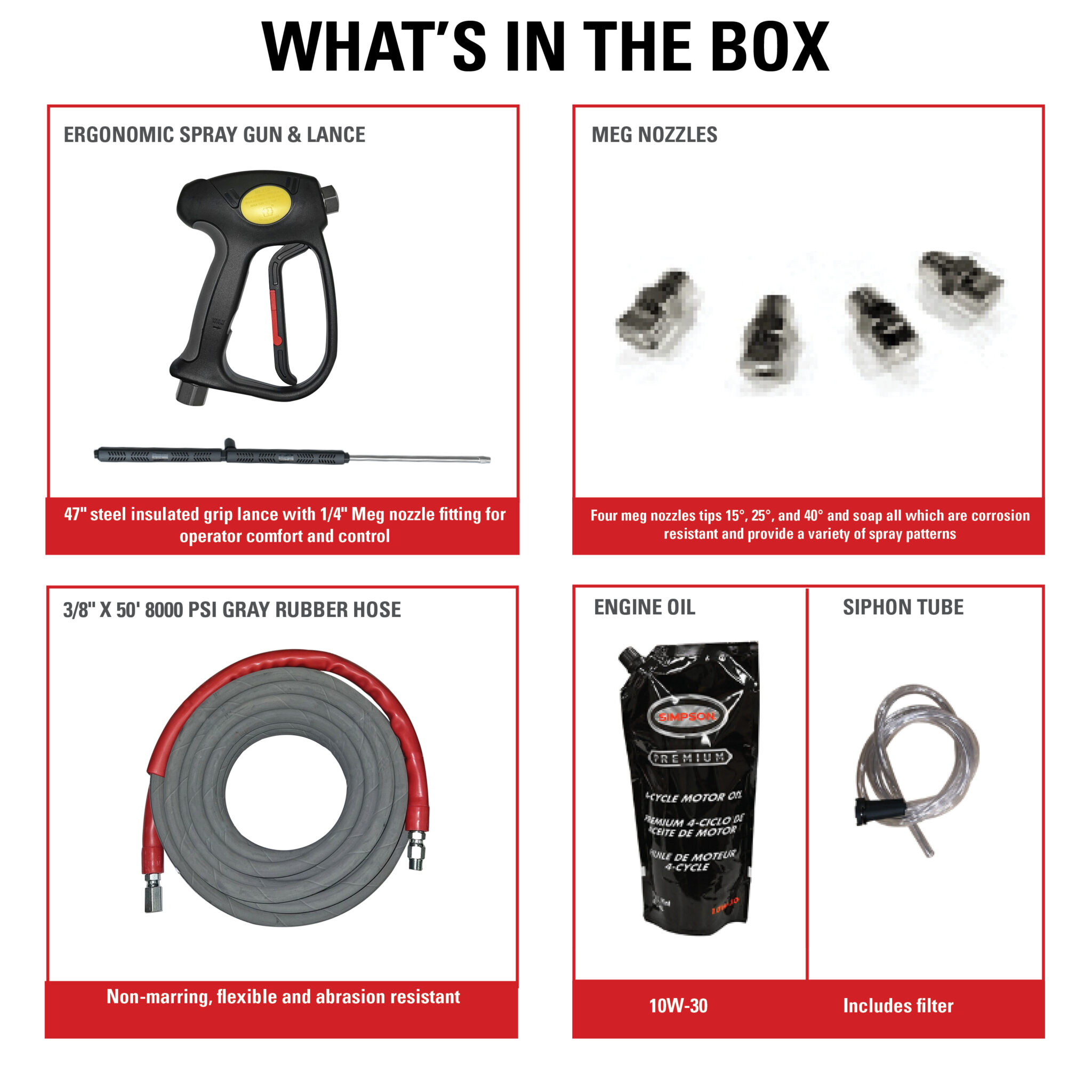

Unit Includes
- Hose
- Lance
- Trigger gun
- Nozzles: 0º, 15º, 25º, 40º, and Soap
- Engine Oil 10W-30
- Low-Pressure Soap Injector

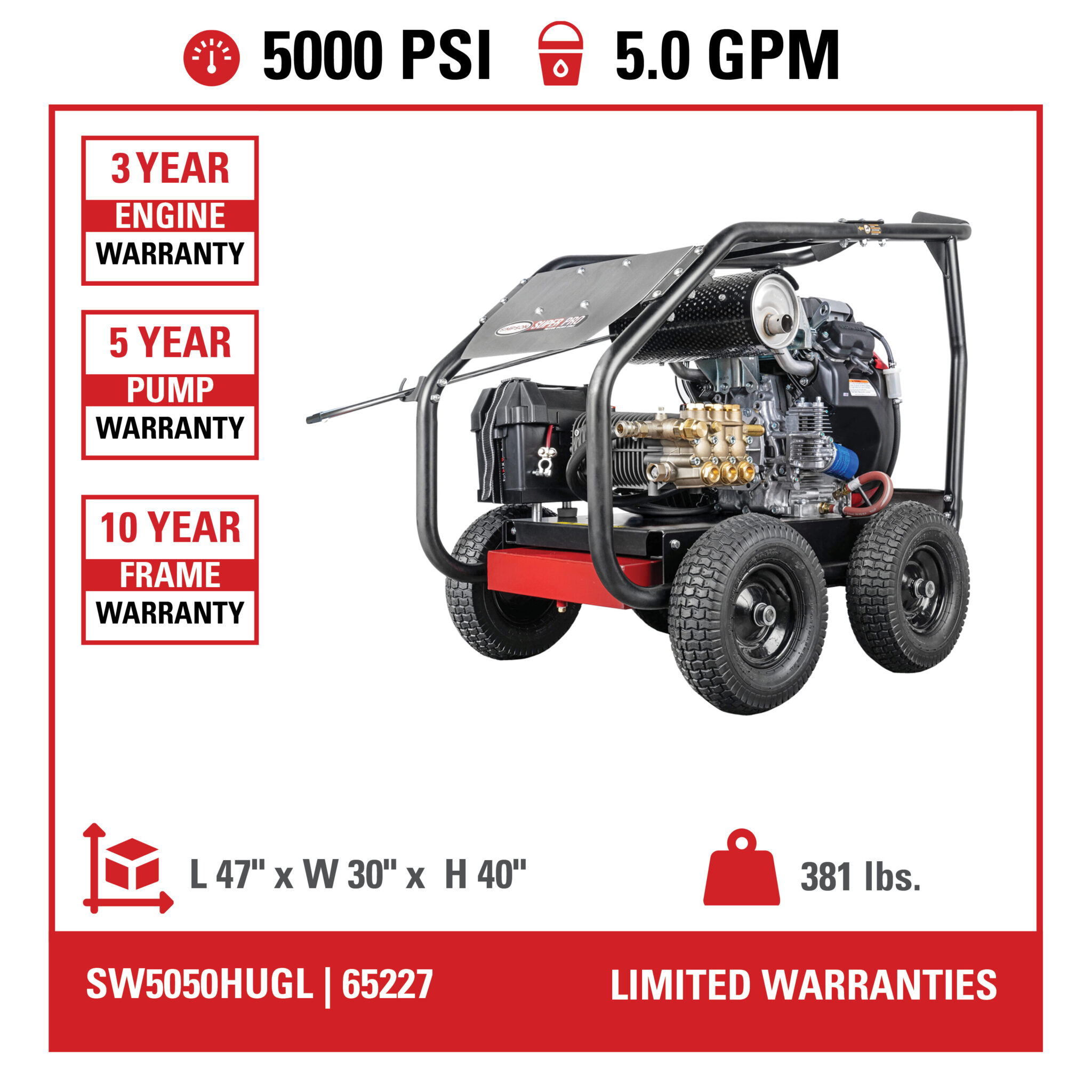

Limited Warranty
All units 10-Year Frame, 5-Year Pump, 3-Year Engine
Pumps
AAA® Industrial Triplex Pump
- Forged brass manifold
- Ceramic-coated plunger sleeves
- Thermal relief valve
- External unloader with bypass hose

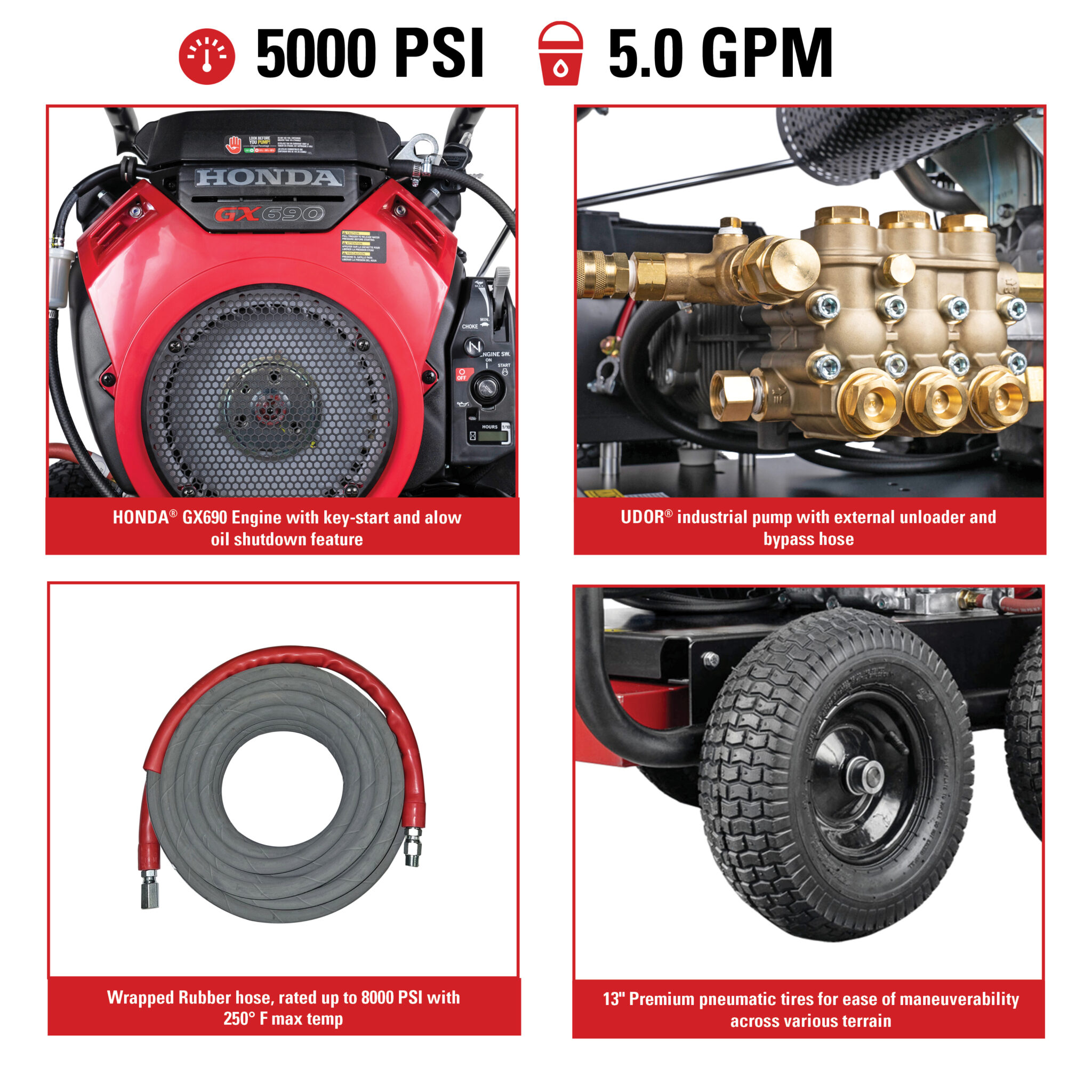

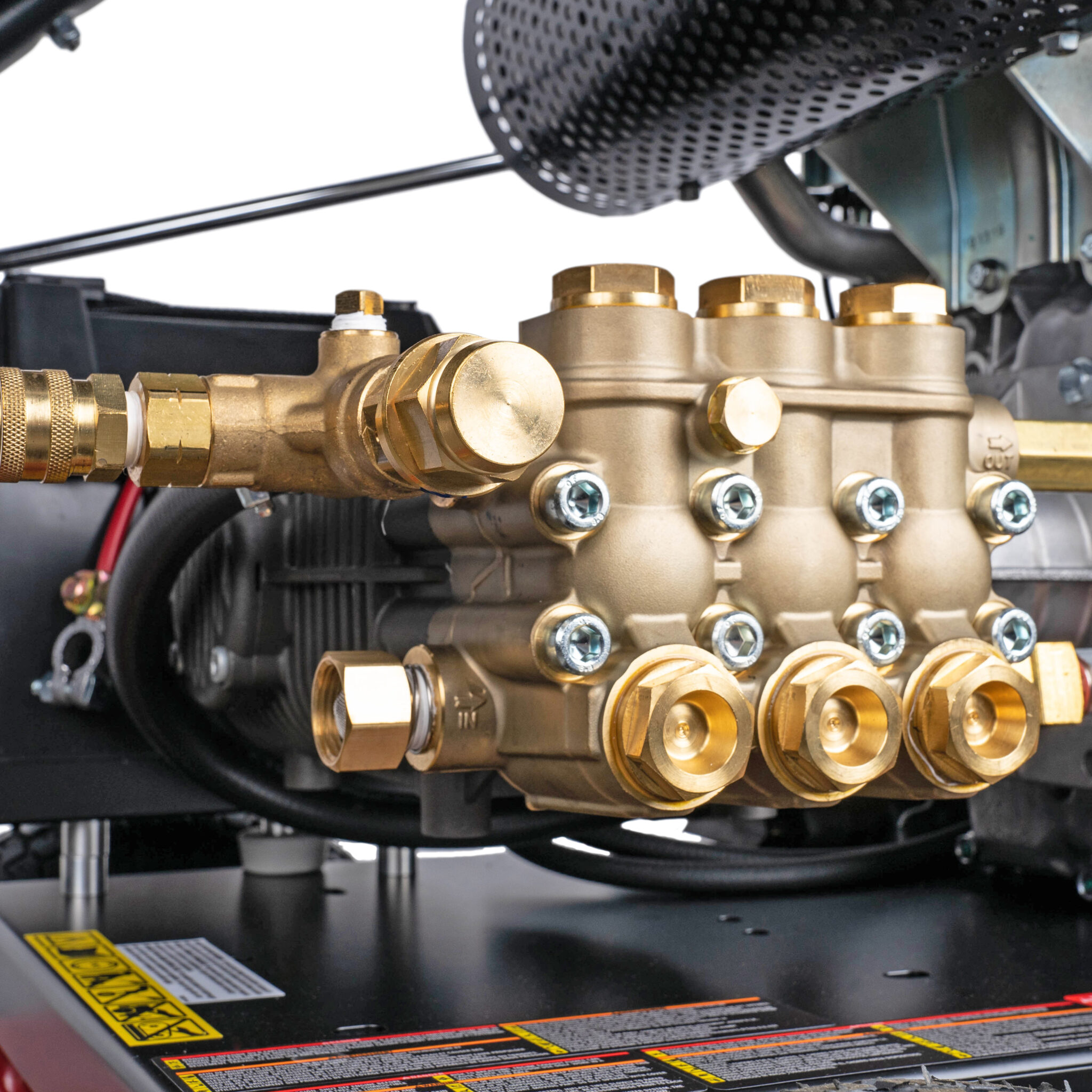

UDOR® Industrial Triplex Pump
- Forged brass manifold
- Thermal relief valve
- Ceramic-coated plunger sleeves
- External unloader with bypass hose
Frame
Steel Frame
- Full 360º protection
- Built-in extended run fuel tanks
- Lifting and hose mounting capabiliti
- Durable and corrosion-resistant
Hoses
- The Monster hose is a steel-braided, kink-resistant, abrasion-resistant hose featuring quick-connect fittings and a durable polyurethane outer jacket

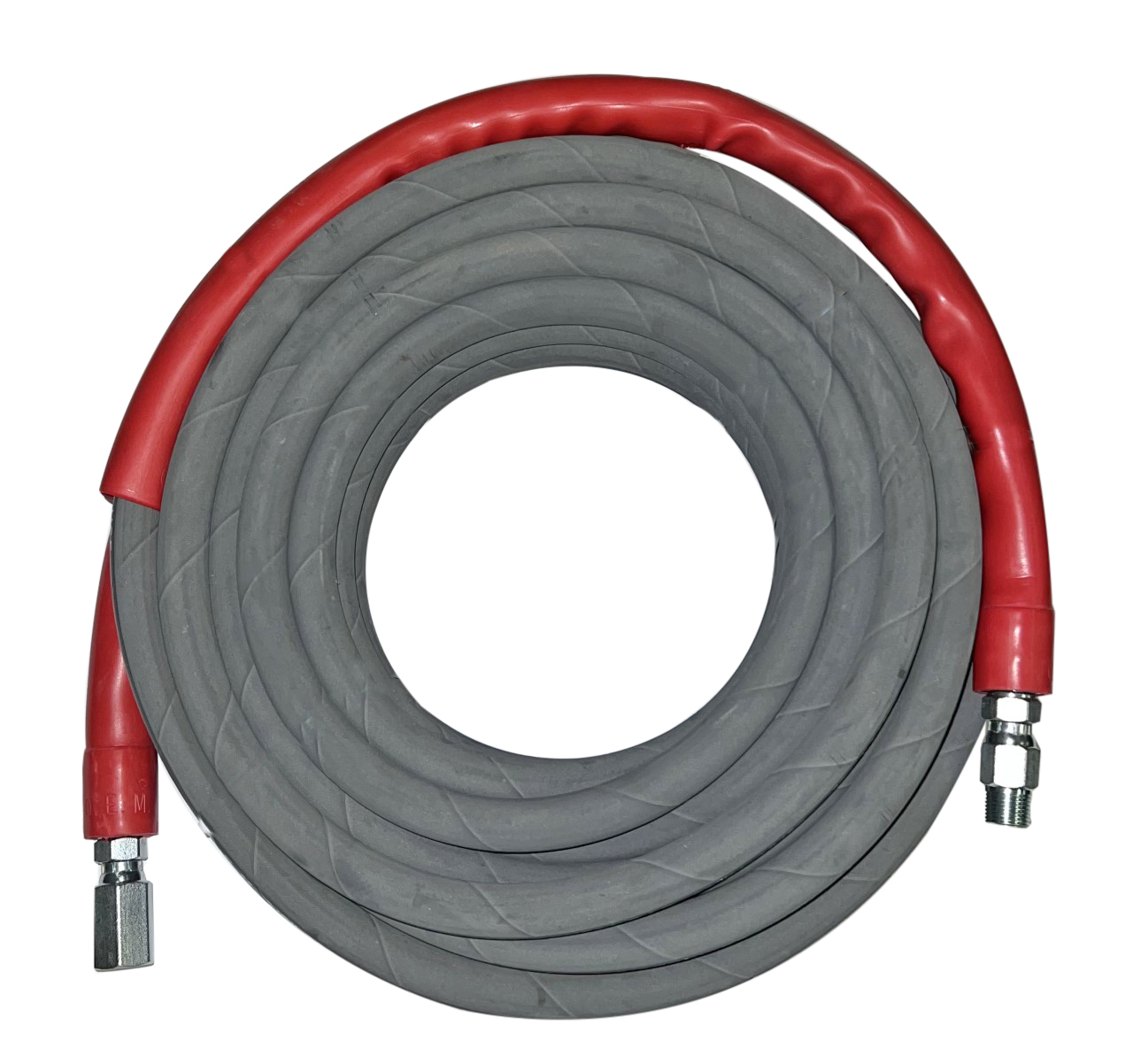

- Wrapped rubber hoses are dual-braided with 24-inch bend protectors
Tires
- Premium pneumatic or foam-filled tires for ease of maneuverability across various terrains
Nozzles
- (5) quick-connect nozzles for a variety of cleaning applications
- MEG nozzles with 1/4" MNPT connection (only on units 5000 PSI and above)

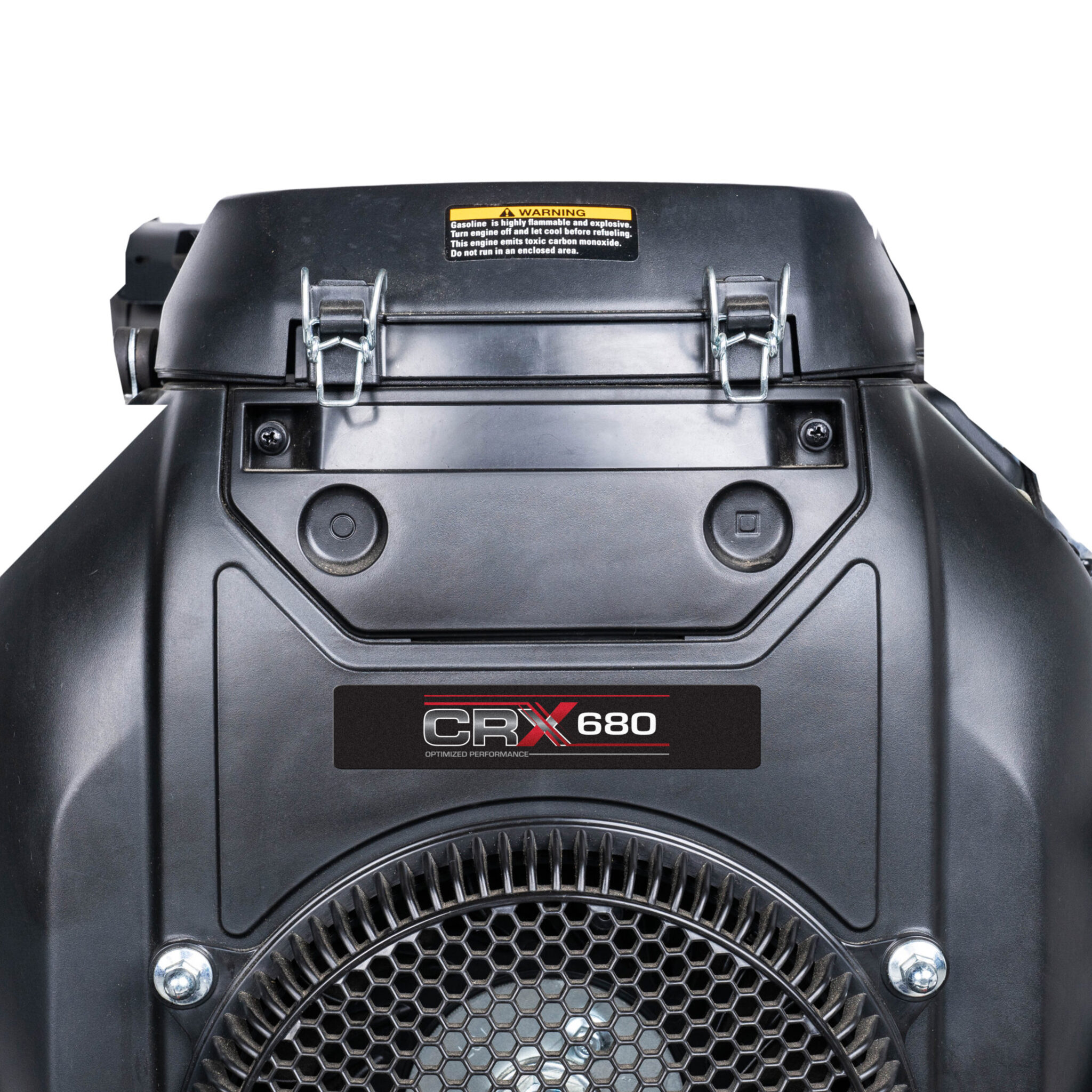

Engines
| Engine |
Displacement |
| CRX® 210 |
208cc |
| CRX® 275 |
272cc |
| CRX® 420 |
420cc |
| CRX® 420 |
420cc |
| CRX® 680 |
679cc |
| CRX® 750 |
750cc |
| HONDA® GX200 |
196cc |
| HONDA® GX270/td> |
270cc |
| HONDA® GX390 |
389cc |
| HONDA® GX690 |
688cc |
Dimensions & Weight
| 65200 |
L 31" x W 25" x H 29" | 150 lbs. |
| 65202 |
L 31" x W 27" x H 30" | 150 lbs |
| 65203 |
L 38" x W 28" x H 33" | 165 lbs. |
| 65206 |
L 43" x W 28" x H 35" | 179 lbs. |
| 65208, 65211 |
L 38" x W 28" x H 33" | 182 lbs. |
| 65209 |
L 38" x W 28" x H 33" | 194 lbs. |
| 65217, 65236 |
L 48"x W 40" x H 24" | 360 lbs |
| 65219, 65353 |
L 46"x W 30" x H 40" | 370 lbs. |
| 65227, 65238 |
L 46"x W 30" x H 40" | 381 lbs. |
| 65237, 65354 |
L 46" x W 30" x H 40" | 400 lbs |
| 65291 |
L 46" x W 30" x H 40"| 365 lbs |
