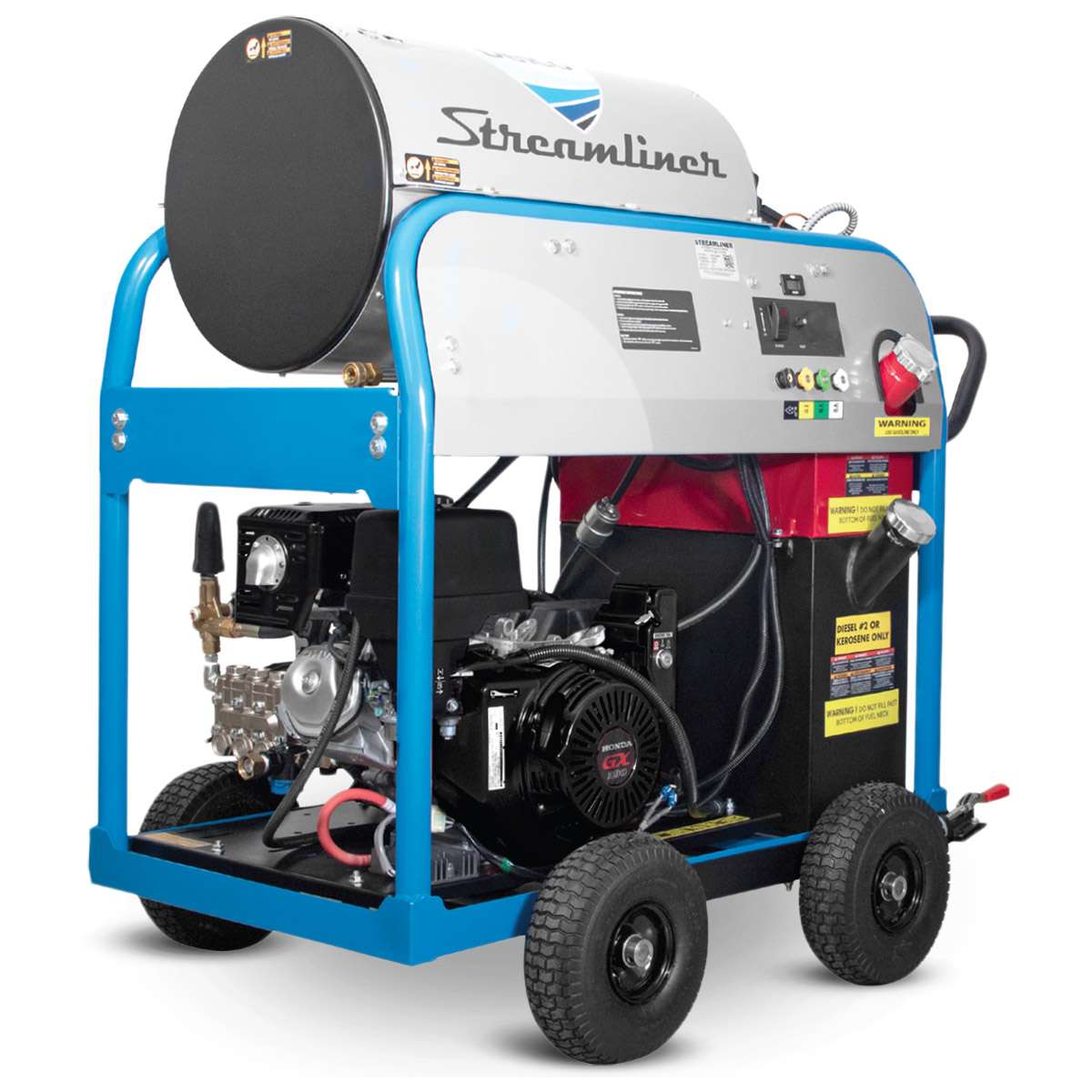

This potent mobile washing system is ingeniously designed to be compact, allowing it to comfortably fit within the confines of a transit van or truck bed, and effortlessly pass through a 36" doorway
Unit Includes
- Hose
- Lance
- Trigger gun
- Nozzles: 15°, 25°, and 40°
- Engine oil 10W-30
- Downstream injector
Limited Warranty
- All Units – 10yr Frame, 5yr Pump, 3yr Engine
Features
- 1750 RPM slow speed
- CRX®, HONDA®, VANGUARD® key-start engines (battery not included)
- Burner on/off rocker switch and hour meter
- High-temperature safety switch
- Isolated pump & engine plate with vibration dampeners
- 3.4 kW generator with two 120V outlets
- 120V burner system
- Wheel brake system
- Burner fuels: No. 1 / No. 2 diesel or kerosene
- 1/2" Schedule 80 horizontal coil
- Large-capacity fuel tank
Unit Includes
- Hose
- Lance
- Trigger gun
- Nozzles: 15°, 25°, and 40°
- Engine oil 10W-30
- Downstream injector
Limited Warranty
- All Units – 10yr Frame, 5yr Pump, 3yr Engine
Features
- 1750 RPM slow speed
- CRX®, HONDA®, VANGUARD® key-start engines (battery not included)
- Burner on/off rocker switch and hour meter
- High-temperature safety switch
- Isolated pump & engine plate with vibration dampeners
- 3.4 kW generator with two 120V outlets
- 120V burner system
- Wheel brake system
- Burner fuels: No. 1 / No. 2 diesel or kerosene
- 1/2" Schedule 80 horizontal coil
- Large-capacity fuel tank
Pumps
General Pump® Industrial Triplex
- Thermal relief valve
- Forged brass manifold
- Ceramic-coated plunger sleeves
- External unloader with bypass hose
UDOR® Industrial Triplex Pump
- Forged brass manifold
- Thermal relief valve
- Ceramic-coated plunger sleeves
- External unloader with bypass hose
Frame
- Heavy-duty 1-1/2" round tubular steel design
- Powder-coated for corrosion resistance
Hose
- 3/8" x 50' steel-braided Armor Hose®
Nozzles
- Quick-connect nozzles for a variety of cleaning applications
Engines
| Engine | Displacement |
|---|---|
| CRX® 420 | 420cc |
| HONDA® GX390 | 389cc |
| VANGUARD® 470cc | 470cc |
Dimensions
- All Units L 50" x W 32" x H 52"
