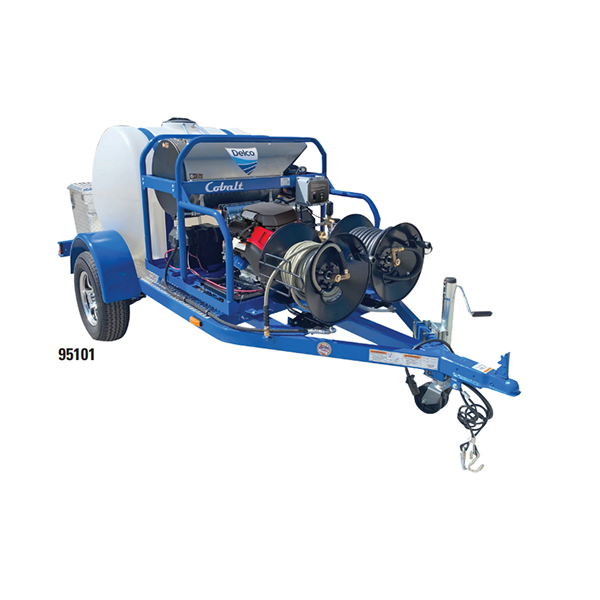

The Delco® Mobile Trailer series represents self-sufficient cleaning powerhouses. These portable Mobile Trailers are ingeniously engineered to harness the power of Delco machines, providing effective cleaning solutions even in locations where water supply is scarce. This makes them an ideal choice for job sites with limited resources.
Unit Includes
- Hose
- Lance
- Trigger gun
- Nozzles: 15°, 25°, 40°, and soap
- Downstream injector
Limited Warranty
All units - 10yr Frame, 5yr Pump, 3yr Engine
Features
- 1750 RPM slow speed
- 1 − 200' high-pressure hose reel with 100' high-pressure hose
- 1 − 200' supply hose reel with 90' supply hose
- Translucent polyethylene water supply tank with easy-to-read water level indicators
- Jack with swivel wheel for easy maneuvering
- 3500 lb. axle with leaf-spring suspension for a smooth ride
- Electric brake system
- Burner fuels: No. 1/No. 2 diesel or kerosene
Pumps
General Pump® Industrial Triplex
- 1750 RPM slow speed
- Thermal relief valve
- Forged brass manifold
- Ceramic-coated plunger sleeves
- External unloader with bypass hose
COMET Industrial Triplex
- 1750 RPM slow speed
- Thermal relief valve
- Forged brass manifold
- Ceramic-coated plunger sleeves
- External unloader with bypass hose
Hoses
- 3/8" x 100' steel-braided Armor Hose®
High-Pressure Hose Reel
- Size: 200'
Supply Hose
- Size: 5/8" x 90'
Supply Hose Reel
- Standard - 200'
Nozzles
- Quick-connect nozzles for a variety of cleaning applications
Additional Specs
Trailer Frame
- Rectangular thick wall steel tubing
Lighting
- LED
Trailer Hitch Ball Size
- 2" ball coupling
Additional Features
- Equipped with 48" toolbox
- 95107 equipped with 16 gal. chemical tank
Engines
| Engine | Displacement |
|---|---|
| HONDA® GX690 | 688cc |
| VANGUARD® 570cc | 570cc |
Dimensions
| 95100, 95101, 95103, 95104 | L 156" (includes tongue) x W 68" x H 62" |
| 95107 | L 192" (includes tongue) x W 90" x H 62" |
