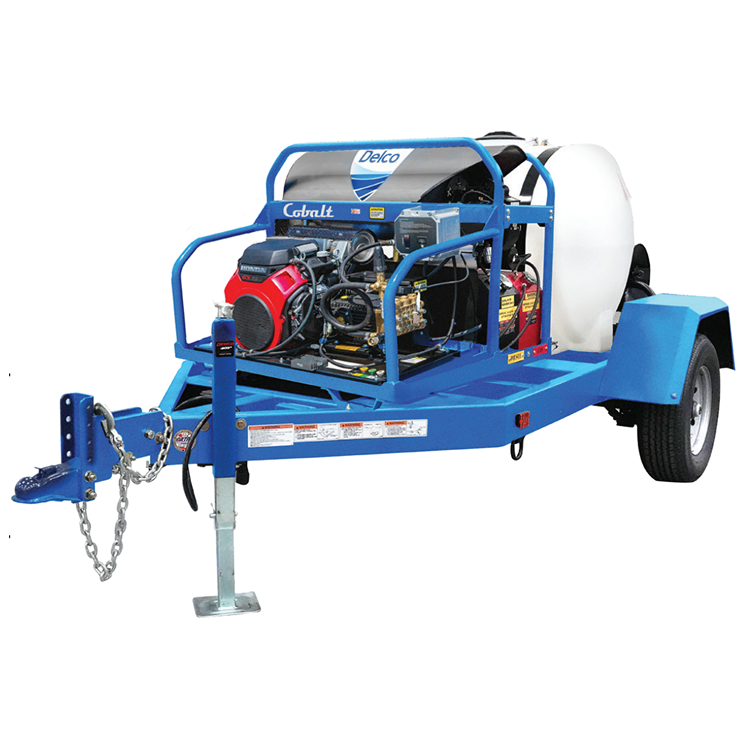

The Delco® Mobile Trailer Series delivers powerful hot-water cleaning in a fully mobile platform. Engineered to operate in areas with limited water access, these trailers provide dependable cleaning performance on job sites where resources are scarce.
Unit Includes
- Hose
- Lance
- Trigger gun
- Nozzles: 15°, 25°, 40°, and soap
- Downstream injector
Limited Warranty
All units - 10yr Frame, 5yr Pump, 3yr Engine
Features
- 1750 RPM slow speed
- 1 − 200' high-pressure hose reel with 100' high-pressure hose
- 1 − 200' supply hose reel with 90' supply hose
- Translucent polyethylene water supply tank with easy-to-read water level indicators
- Jack with swivel wheel for easy maneuvering
- 3500 lb. axle with leaf-spring suspension for a smooth ride
- Electric brake system
- Burner fuels: No. 1/No. 2 diesel or kerosene
Pumps
General Pump® Industrial Triplex
- 1750 RPM slow speed
- Thermal relief valve
- Forged brass manifold
- Ceramic-coated plunger sleeves
- External unloader with bypass hose
UDOR® Industrial Triplex Pump
- Forged brass manifold
- Thermal relief valve
- Ceramic-coated plunger sleeves
- External unloader with bypass hose to tank
Hoses
- 3/8" x 100' steel-braided Armor Hose®
High-Pressure Hose Reel
- Size: 200'
Supply Hose
- Size: 5/8" x 90'
Supply Hose Reel
- Standard - 200'
Nozzles
- Quick-connect nozzles for a variety of cleaning applications
Additional Specs
Trailer Frame
- 6" powder coated C-channel
Lighting
- LED
Trailer Hitch Ball Size
- 2" ball coupling (Stage 2), 2-5/16" ball coupling (Stage 3)
Engines
| Engine | Displacement |
|---|---|
| HONDA® GX690 | 688cc |
Dimensions
| 95161, 95163, 95180 | L 156" (includes tongue) x W 68" x H 62" 1500 lbs. |
| 95176, 95177, 95178, 95181, 95182 | L 192" (includes tongue) x W 90" x H 62" 3500 lbs |
