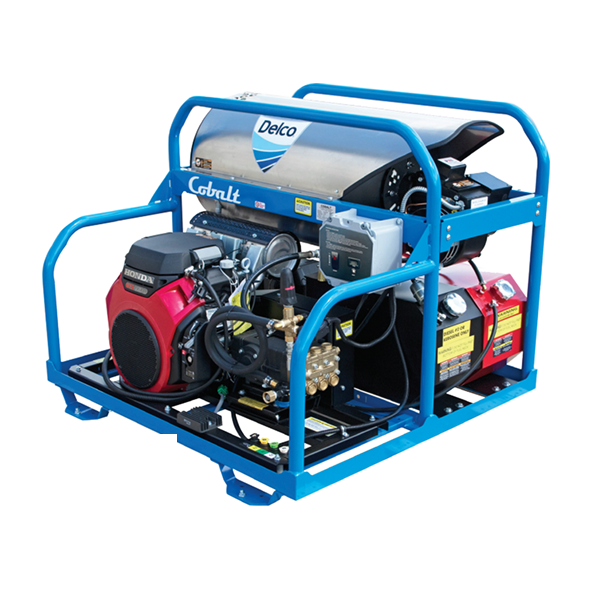

Take on the toughest cleaning jobs with the Cobalt series. Built with a robust twin-cylinder engine, it delivers dependable power that gets the job done. When turned on the diesel-fired heating system provides up to a 120°F heat rise, helping tackle even the toughest tasks with ease.
Unit Includes
- Hose
- Lance
- Trigger gun
- Nozzles: 15°, 25°, 40°, and soap
- Engine oil 10W-30
- Downstream injector
Limited Warranty
All units - 10yr Frame, 5yr Pump, 3yr Engine
Features
- 1750 RPM slow speed
- V-twin horizontal engine with key-start (battery not included)
- NEMA 4X electrical enclosure with burner on/off rocker switch and hour meter
- Corrosion-resistant stainless-steel coil cover
- Isolated pump & engine plate with vibration dampeners
- Burner fuels: No. 1/No. 2 diesel or kerosene
- 1/2" Schedule 80 horizontal coil
Pumps
General Pump® Industrial Triplex
- 1750 RPM slow speed
- Thermal relief valve
- Forged brass manifold
- Ceramic-coated plunger sleeves
- External unloader with bypass hose
UDOR® Industrial Triplex Pump
- Forged brass manifold
- Thermal relief valve
- Ceramic-coated plunger sleeves
- External unloader with bypass hose
Frame
- Heavy-duty 1-1/2" round tubular steel design
- Powder-coated for corrosion resistance
- Removable feet for forklift capabilities and alternative mounting options
Hose
- 3/8" x 50' steel-braided Armor Hose®
Nozzles
- Quick-connect nozzles for a variety of cleaning applications
Engines
| ENGINE | DISPLACEMENT |
|---|---|
| CRX® 680 | 679cc |
| VANGUARD® 570cc | 570cc |
| HONDA® GX690 | 688cc |
Dimensions
- All Units - L 42" x W 40" x H 38"
