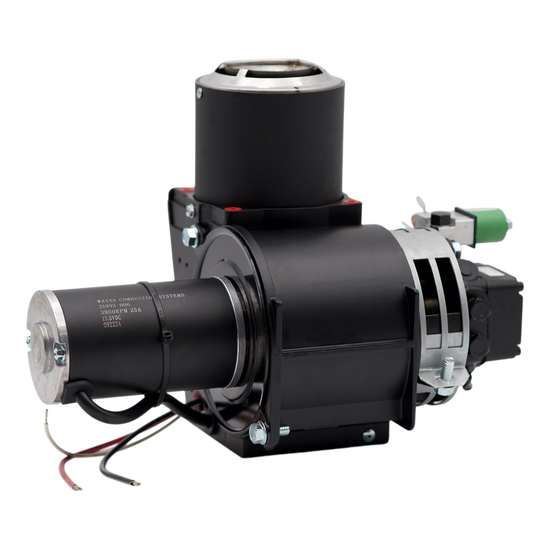

12v solid state constant duty ignitor 12VDC, permanent magnet motor Controlled flame pattern Firing capacity: 0.50 to 2.75 GPH Fuel pump: Compact 3,450 RPM, single stage Motor: 12VDC permanent magnet, 4,500 RPM Ignition: 20,000v/28MA/50VA secondary
Designed for use with #1and #2 fuel oil, allowing the burner to operate from a gasoline driven engine. The burner maintains low nozzle temperatures, positive flame retention and a controlled flame pattern for most precise applications.
